Track B: Opus 5.5 with a GPT-6.1-Terra reviewer

316:const PAINT_VS = `${SKIN_HEAD}
341:const PAINT_FS = `
342:  uniform int uKind; uniform vec3 uBase; uniform vec3 uKey; uniform sampler2D uMap; uniform int uAlpha;
426:    else if (uCastOn == 1 && uKind == 1 && int(uInfo.x * 255.0 + 0.5) == 2 && castShadow() > 0.5)
430:    if (uKind == 0 || uKind == 5 || uKind == 6) {                    // cloth, leather, ground
433:      float sh = uKind == 5 ? 0.93 : (cool ? 0.70 : 0.96);
437:      float l = lit + (g1 - 0.5) * uGrain - (uKind == 6 ? 0.22 : 0.0);  // ground: a flat top sits at the base colour
439:      if (uKind == 5) col *= 0.965 + 0.07 * vnoise(vObj * 22.0);       // mottled leather
440:    } else if (uKind == 1) {                                           // skin: pale, nearly unshaded from the front
446:    } else if (uKind == 2) {                                           // hair: four even bands, hard strand highlights
454:    } else if (uKind == 3 || uKind == 4) {                             // steel, gold
457:      bool gilt = uKind == 4 || (plate && w > 0.0 && e < w);            // an outline plate's gold border
458:      col = metal(gilt, gilt && uKind == 3 ? uGold : uBase, n, v, lit, plate ? vPlate.w : -1.0);
465:    } else if (uKind == 7) {                                           // iris
468:    } else if (uKind == 8) { col = tex.rgb; }
470:    if (vPlate.x > 0.5 && vPlate.z > 0.0 && uKind != 3 && uKind != 4) {   // a cloth outline piece's gold border,
490:    if (uKind <= 6) {
492:      col *= uKind == 1 && uSkinRamp == 1 ? mix(vec3(1.0), grade, 0.3) : grade;   // a designed skin ramp takes less of it
496:      if (uKind != 1) col *= 1.0 + (g2 - 0.5) * 0.06;
500:const PAINT_COMP = `
568:const paint = compPass(PAINT_COMP, { tColor: { value: null }, tInfo: { value: null }, tDepth: { value: null }, uRes: { value: new THREE.Vector2() },
804:  const u = { uKind: { value: 9 }, uBase: { value: new THREE.Color(0.8, 0.8, 0.8) }, uKey: { value: KEY.clone() },
816:  if (P) { u.uKind.value = KIND[P.kind] ?? 0; if (P.base) u.uBase.value = hex(P.base); if (P.grain != null) u.uGrain.value = P.grain; }
817:  else if (Rl.bands) { u.uKind.value = Rl.world ? 6 : 0; u.uBase.value = hex(Rl.bands[Math.min(1, Rl.bands.length - 1)][1]); }
828:  if (role === "iris") { u.uKind.value = 7; u.uAlpha.value = 1; }
829:  else if (role === "white" || role === "highlight") { u.uKind.value = map ? 8 : 9; if (map) u.uAlpha.value = 1; u.uFlat.value = hex(Rl.color || "#ffffff"); }
830:  else if (!P && Rl.mode === "flat") { u.uKind.value = 9; u.uFlat.value = hex(Rl.color); if (map) u.uAlpha.value = role === "line" ? 2 : 1; }
832:  const m = new THREE.ShaderMaterial({ uniforms: u, vertexShader: PAINT_VS, fragmentShader: PAINT_FS, side: THREE.DoubleSide,
1323:    if (!u || !u.uSkinRamp || u.uKind.value !== 1) continue;
CLOTH_HEM_ONLY = {"OUTFIT_skirt"}            # border band on the hem row only (its waist has a gold trim)


def scene_info(portrait, palette):
    """Everything the browser's pixel renderer and cloth solver need besides the meshes: palette
    bands per role, the lights, body colliders, cloth grids and the mouth curve (model space,
    turned to face +z like the GLB)."""
    import vroid_portrait as vp
    from vrm import bone_weight
    hexp = lambda c: palette[c]
    bands = lambda tbl: [[thr if thr > -5 else -9, hexp(c)] for thr, c in tbl]
    roles = {"face": dict(mode="bands", bands=bands(vp.SKIN_BANDS)),
             "body": dict(mode="bands", bands=bands(vp.SKIN_BANDS), cap=hexp("4")),
             "shadow": dict(mode="flat", color=hexp("3")),
             "hair": dict(mode="bands", bands=bands(vp.HAIR_BANDS)),
             "cloth": dict(mode="bands", bands=bands(vp.CLOTH_BANDS)),
             "line": dict(mode="flat", color=hexp("o")), "brow": dict(mode="flat", color=hexp("A")),
             "mouth": dict(mode="flat", color=hexp("1")), "white": dict(mode="flat", color=hexp("w")),
             "highlight": dict(mode="flat", color=hexp("w")),
             "iris": dict(mode="iris", colors=[hexp("r"), hexp("s"), hexp("t")], cuts=[0.25, 0.5])}
    for r, tbl in vp.MATERIALS.items():
        roles[r] = dict(mode="bands", bands=bands(tbl), world=r in vp.WORLD_ROLES)
    names = portrait.v.nodes_by_name()
    W = portrait.v.node_world(portrait.pose_now)
    body = [p for p, r in zip(portrait.prims, portrait.roles) if r == "body"][0]
    caps = []
    for a, b in CAPSULES:
        if a not in names or b not in names:
            continue
        A, B = W[names[a]][:3, 3], W[names[b]][:3, 3]
        wv = bone_weight(body, (a,))
        pts = body["pos"][wv > 0.5]
        if len(pts) < 8:
            continue
        ab = B - A
        t = np.clip(((pts - A) @ ab) / (ab @ ab), 0, 1)
        d = np.linalg.norm(pts - (A + t[:, None] * ab), axis=1)
        caps.append(dict(a=(A * FLIP).tolist(), b=(B * FLIP).tolist(), r=float(np.percentile(d, 70) + 0.012),
                         bones=[a, b]))
    cloth = {}
    for p in portrait.prims:
        if p["material"] in CLOTH and "grid" in p:
            trims, band, collide = CLOTH[p["material"]]
            cloth[p["material"]] = dict(u=int(p["grid"][0]), v=int(p["grid"][1]), trims=list(trims), band=band,
                                        collide=list(collide) if collide else None, closed=bool(p.get("closed")),
                                        edges="hem" if p["material"] in CLOTH_HEM_ONLY else "all")
    curve = None
    if getattr(portrait, "mouth_curve", None) is not None:
        face = [p for p, r in zip(portrait.prims, portrait.roles) if r == "face"]
        allp = np.concatenate([p["pos"] for p in face])
        alln = np.concatenate([p["nrm"] for p in face])
        from scipy.spatial import cKDTree
        _, i = cKDTree(allp).query(portrait.mouth_curve)
        curve = ((portrait.mouth_curve + alln[i] * 0.0015) * FLIP).tolist()
    marks = None
    if getattr(portrait, "marks", None):
        m = next(iter(portrait.marks.values()))
        img = Image.fromarray(np.where(m == 1, 128, 0).astype(np.uint8), "L")     # nose mark only; the mouth is a line
        b = io.BytesIO()
        img.save(b, "PNG", optimize=True)
        import base64
        marks = base64.b64encode(b.getvalue()).decode()
    # painted renderer: a material kind and one base colour per role; the shader builds the ramp
    pc = dict(signature="#7d1e2c", doublet="#2a2d3d", heraldry="#dfe2e8", leather="#5f3e2b", boot="#4a3326", glove="#5f3e2b",
              steel="#a6adbb", gold="#b08b3f", hair=hexp("C"), trim="#b08b3f")
    pc.update(getattr(portrait, "paint", None) or {})
    skin = dict(kind="skin", base=pc.get("skin") or "#f8e1d5")                       # light skin unless a tone is set
    skin["ramp"] = skin_ramp(skin["base"])                                              # its lit, shade and deep shade
    paint = {"face": dict(skin), "body": dict(skin), "shadow": dict(skin, shade=True),   # shadow cards: skin in shade
             "hair": dict(kind="hair", base=pc["hair"]),
             "coat": dict(kind="cloth", base=pc["signature"]), "cape": dict(kind="cloth", base=pc["signature"]),
             "signature": dict(kind="cloth", base=pc["signature"]), "doublet": dict(kind="cloth", base=pc["doublet"]),
             "cloth": dict(kind="cloth", base=pc["doublet"]), "heraldry": dict(kind="cloth", base=pc["heraldry"]),
             "leather": dict(kind="leather", base=pc["leather"]), "boot": dict(kind="leather", base=pc["boot"]),
             "glove": dict(kind="leather", base=pc["glove"]), "metal": dict(kind="steel", base=pc["steel"]),
             "steel": dict(kind="steel", base=pc["steel"]), "gold": dict(kind="gold", base=pc["gold"]),
             "grass": dict(kind="world", base="#5a7a3a"), "dirt": dict(kind="world", base="#6a4a32"),
             "stone": dict(kind="world", base="#7c7a86"),
             "motif": dict(kind="cloth", base=pc.get("motif", "#3a44a0"))}       # decal paint on steel (tools/plates.py)
    for role, val in pc.items():                             # extra roles a cast entry names (cloth unless it says)
        if role not in paint and isinstance(val, str) and val.startswith("#"):
            paint[role] = dict(kind="cloth", base=val)
        elif role not in paint and isinstance(val, dict) and "base" in val:
            paint[role] = dict(kind=val.get("kind", "cloth"), base=val["base"])
    for role, g in (pc.get("grain") or {}).items():          # optional per-role brush grain (big flat cloth mottles)
        if role in paint:
            paint[role]["grain"] = g
    return dict(roles=roles, light=vp.LIGHT.tolist(), sun=vp.SUN.tolist(), capsules=caps, cloth=cloth, face_marks=marks,
                paint=paint,
                mouth_curve=curve, mouth_bone="J_Bip_C_Head", ink=dict(o=hexp("o"), skin=hexp("1"), hair=hexp("A")),
                skin=[hexp(c) for c in "12345"], depth_gap=0.012)


# ---- skinned export: one rigged character + animation clips --------------------------------------------------------
F4 = np.diag([-1.0, 1.0, -1.0, 1.0])

const PAINT_VS = `${SKIN_HEAD}
  attribute float edge; attribute vec4 _plate;
  varying vec3 vN; varying vec2 vUv; varying vec3 vView; varying vec3 vObj; varying float vEdge; varying vec4 vPlate;
  void main() {
    ${SKIN_BODY}
    vN = normalize(normalMatrix * objectNormal); vUv = uv; vObj = position; vEdge = edge; vPlate = _plate;
    vec4 mv = modelViewMatrix * vec4(transformed, 1.0); vView = -mv.xyz;
    gl_Position = projectionMatrix * mv;
  }`;
const HSV = `
  vec3 rgb2hsv(vec3 c) {
    vec4 K = vec4(0.0, -1.0 / 3.0, 2.0 / 3.0, -1.0);
    vec4 p = mix(vec4(c.bg, K.wz), vec4(c.gb, K.xy), step(c.b, c.g));
    vec4 q = mix(vec4(p.xyw, c.r), vec4(c.r, p.yzx), step(p.x, c.r));
    float d = q.x - min(q.w, q.y);
    return vec3(abs(q.z + (q.w - q.y) / (6.0 * d + 1e-10)), d / (q.x + 1e-10), q.x);
  }
  vec3 hsv2rgb(vec3 c) {
    vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
    vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
    return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
  }`;
// painted renderer, after the Unicorn Overlord study: tight terminators, hue-shifted ramps built from
// one base colour per material, hard reflection bands on steel, strand highlights on hair, a stage
// grade and a back rim
const PAINT_FS = `
  uniform int uKind; uniform vec3 uBase; uniform vec3 uKey; uniform sampler2D uMap; uniform int uAlpha;
  uniform int uPass; uniform vec4 uInfo; uniform vec3 uEye[3]; uniform vec3 uFlat; uniform vec3 uSkinRef;
  uniform vec3 uGold; uniform vec3 uAmbient; uniform vec3 uKeyCol; uniform vec3 uRimCol; uniform float uGrain;
  uniform int uFaceTex; uniform int uDecal; uniform vec3 uMotif; uniform vec3 uBand; uniform vec3 uSkinTone; uniform int uShadeOnly;
  uniform int uSkinRamp; uniform vec3 uSkinL; uniform vec3 uSkinS; uniform vec3 uSkinC;
  uniform sampler2D tCastInfo; uniform sampler2D tCastDepth; uniform vec2 uCastRes; uniform int uCastOn;
  uniform float uCastNear; uniform float uCastFar; uniform float uCastPpm;
  // Cast shadows on skin, in screen space (the "depth offset" shadows of anime toon shaders): walk from this pixel
  // toward the key light across the info pass already drawn; if the face (the jaw) or hair stands in front of that
  // ray, this pixel is in its shadow. The shape is the caster's own outline as the camera sees it, at any angle.
  float castShadow() {
    vec2 uv = gl_FragCoord.xy / uCastRes, px = 1.0 / uCastRes;
    float z0 = uCastNear + texture2D(tCastDepth, uv).x * (uCastFar - uCastNear);
    float sxy = length(uKey.xy);
    if (sxy < 0.05) return 0.0;
    vec2 dir = uKey.xy / sxy;
    float lz = uKey.z / sxy;                                    // the ray's rise toward the camera per metre across
    for (int s = 1; s <= 14; s++) {
      float dm = float(s) * 0.003;                              // 3 mm steps across the screen, up to 4.2 cm
      vec2 q = uv + dir * dm * uCastPpm * px;
      vec4 ni = texture2D(tCastInfo, q);
      if (ni.a < 0.5) continue;
      int r = int(ni.r * 255.0 + 0.5);
      if (r != 1 && r != 3 && r != 11) continue;                // casters: the face (jaw, chin) and hair
      float zq = uCastNear + texture2D(tCastDepth, q).x * (uCastFar - uCastNear);
      float zr = z0 - lz * dm;
      if (zq < zr - 0.004 && zq > zr - 0.20) return 1.0;
    }
    return 0.0;
  }
  varying vec3 vN; varying vec2 vUv; varying vec3 vView; varying vec3 vObj; varying float vEdge; varying vec4 vPlate;
  ${HSV}
  float hash(vec3 p) { p = fract(p * 0.3183099 + 0.1); p *= 17.0; return fract(p.x * p.y * p.z * (p.x + p.y + p.z)); }
  float vnoise(vec3 x) {
    vec3 i = floor(x), f = fract(x); f = f * f * (3.0 - 2.0 * f);
    return mix(mix(mix(hash(i), hash(i + vec3(1,0,0)), f.x), mix(hash(i + vec3(0,1,0)), hash(i + vec3(1,1,0)), f.x), f.y),
               mix(mix(hash(i + vec3(0,0,1)), hash(i + vec3(1,0,1)), f.x), mix(hash(i + vec3(0,1,1)), hash(i + vec3(1,1,1)), f.x), f.y), f.z);
  }
  float toward(float h, float target, float amt) { float d = target - h; d -= floor(d + 0.5); return fract(h + clamp(d, -amt, amt)); }
  vec3 tone(vec3 base, float hue, float amt, float sMul, float vMul) {
    vec3 h = rgb2hsv(base);
    return hsv2rgb(vec3(toward(h.x, hue, amt), clamp(h.y * sMul, 0.0, 1.0), clamp(h.z * vMul, 0.0, 1.0)));
  }
  float st(float x, float t) { return smoothstep(t - 0.03, t + 0.03, x); }
  // Steel and gold. Hard reflection bands (dark below the horizon, a dark core under a white streak)
  // read well where the surface turns fast: rims, tubes, lames. On a broad plate the reflection
  // barely changes, so a band there fills the whole plate (the blotches): bands fade by how sharply
  // the surface curves (normal change per metre on screen), and broad plates get a soft tone that
  // lightens up each outline plate (hgt: height in the plate 0..1, or -1 without plate data).
  vec3 metal(bool gold, vec3 base, vec3 n, vec3 v, float lit, float hgt) {
    vec3 r = reflect(-v, n);
    float ry = r.y + (vnoise(vObj * vec3(3.0, 14.0, 3.0)) - 0.5) * 0.14;   // jitter the bands along their length, not into blobs
    float curv = length(fwidth(n)) / max(length(fwidth(vView)), 1e-5);
    float sharp = smoothstep(5.0, 14.0, curv);
    // a shaped plate's domes (over the bust, a crowned panel) turn the bands into closed rings: plates
    // keep only a little of them and take a crisp highlight toward the light instead
    if (hgt >= 0.0) sharp *= 0.25; else sharp = max(sharp, 0.3);
    vec3 s0, s1, s2, s3;
    if (!gold) { s0 = tone(base, 0.68, 0.10, 2.4, 0.32); s1 = tone(base, 0.68, 0.06, 1.7, 0.76);
                 s2 = tone(base, 0.12, 0.0, 0.8, 0.88); s3 = vec3(0.97, 0.96, 0.92); }
    else { s0 = vec3(0.30, 0.20, 0.30); s1 = tone(base, 0.20, 0.03, 1.0, 0.72); s2 = base; s3 = tone(base, 0.16, 0.03, 0.5, 1.5); }
    vec3 hard = mix(s0, s1, st(ry, -0.42));                          // facing down: dark
    hard = mix(hard, s2, st(ry, -0.08));                             // facing us: the plate's own grey
    hard = mix(hard, s0, st(ry, 0.36));                              // dark core under the streak
    hard = mix(hard, s3, st(ry, 0.47));                              // the white streak
    hard = mix(hard, s2 * 1.06, st(ry, 0.70));
    float k = smoothstep(-0.55, 0.30, r.y);                          // broad: darker toward the ground (no jitter:
    if (hgt >= 0.0) k = clamp(k * 0.45 + hgt * 0.80 - 0.18, 0.0, 1.0);   // on a flat plate it streaks)
    else k = clamp(k * 0.6 + n.y * 0.35 + 0.05, 0.0, 1.0);           // without plate data: lighter facing up
    vec3 soft = mix(s1 * 0.9, s2, k);
    float hl = dot(n, normalize(uKey + v));                          // the key's highlight, a hard-edged shape
    if (hgt >= 0.0) soft = mix(soft, mix(s2, s3, 0.6), st(hl, 0.955) * smoothstep(0.45, 0.8, hgt));   // the upper part only
    vec3 col = mix(soft, hard, sharp);
    return mix(col * 0.72 + s0 * 0.28, col, st(lit, 0.30));
  }
  void main() {
    vec4 tex = texture2D(uMap, vUv);
    if (uAlpha == 1 && tex.a < 0.5) discard;
    if (uAlpha == 2 && (tex.a < 0.5 || dot(tex.rgb, vec3(1.0 / 3.0)) >= 0.42)) discard;
    if (uPass == 1) { gl_FragColor = uInfo; return; }
    vec3 n = normalize(vN); if (!gl_FrontFacing) n = -n;
    vec3 v = normalize(vView);
    float lit = dot(n, uKey) * 0.5 + 0.5;
    if (uShadeOnly == 1) lit = min(lit, 0.37);                        // shadow cards only ever darken skin, to a soft shade
    else if (uCastOn == 1 && uKind == 1 && int(uInfo.x * 255.0 + 0.5) == 2 && castShadow() > 0.5)
      lit = min(lit, 0.37);                                           // body skin under the jaw's or the hair's shadow
    float g1 = vnoise(vObj * 40.0), g2 = vnoise(vObj * 150.0);
    vec3 col;
    if (uKind == 0 || uKind == 5 || uKind == 6) {                    // cloth, leather, ground
      vec3 hb = rgb2hsv(uBase);
      bool cool = hb.x > 0.42 && hb.x < 0.86;
      float sh = uKind == 5 ? 0.93 : (cool ? 0.70 : 0.96);
      float li = cool ? 0.52 : 0.13;
      vec3 c0 = tone(uBase, sh, 0.09, 1.12, 0.40), c1 = tone(uBase, sh, 0.05, 1.08, 0.64);
      vec3 c3 = tone(uBase, li, 0.03, 0.80, 1.20);
      float l = lit + (g1 - 0.5) * uGrain - (uKind == 6 ? 0.22 : 0.0);  // ground: a flat top sits at the base colour
      col = mix(c0, c1, st(l, 0.30)); col = mix(col, uBase, st(l, 0.50)); col = mix(col, c3, st(l, 0.91));
      if (uKind == 5) col *= 0.965 + 0.07 * vnoise(vObj * 22.0);       // mottled leather
    } else if (uKind == 1) {                                           // skin: pale, nearly unshaded from the front
      vec3 sL = vec3(0.973, 0.882, 0.835), sS = vec3(0.776, 0.659, 0.608), sC = vec3(0.451, 0.322, 0.310);
      if (uSkinRamp == 1) { sL = uSkinL; sS = uSkinS; sC = uSkinC; }   // the character's tone, designed per tone
      col = mix(sC, sS, st(lit, 0.20)); col = mix(col, sL, st(lit, 0.38));
      if (uFaceTex == 1) col *= clamp(tex.rgb / uSkinRef, 0.55, 1.05);
      if (uSkinRamp == 0) col *= uSkinTone;                            // older builds: one tint over the light skin
    } else if (uKind == 2) {                                           // hair: four even bands, hard strand highlights
      float strand = dot(tex.rgb, vec3(1.0 / 3.0));
      vec3 c0 = tone(uBase, 0.72, 0.07, 1.10, 0.45), c1 = tone(uBase, 0.72, 0.035, 1.05, 0.68);
      vec3 c2 = tone(uBase, 0.56, 0.02, 0.92, 1.10), c3 = tone(uBase, 0.56, 0.03, 0.55, 1.42);
      float l = lit + (strand - 0.6) * 0.12;
      col = mix(c0, c1, st(l, 0.40)); col = mix(col, uBase, st(l, 0.56)); col = mix(col, c2, st(l, 0.84));
      float sp = dot(n, normalize(uKey + v)) + (strand - 0.6) * 0.18;
      col = mix(col, c3, st(sp, 0.90) * (1.0 - st(sp, 0.985)));
    } else if (uKind == 3 || uKind == 4) {                             // steel, gold
      bool plate = vPlate.x > 0.5;
      float e = vPlate.y, w = vPlate.z;
      bool gilt = uKind == 4 || (plate && w > 0.0 && e < w);            // an outline plate's gold border
      col = metal(gilt, gilt && uKind == 3 ? uGold : uBase, n, v, lit, plate ? vPlate.w : -1.0);
      if (plate && w > 0.0) {                                           // engraved lines: one inside the border, one on its seam
        float aa = fwidth(e) * 1.2 + 1e-5;
        float l1 = 1.0 - smoothstep(0.0010, 0.0010 + aa, abs(e - (w + 0.0050)));
        float l2 = 1.0 - smoothstep(0.0006, 0.0006 + aa, abs(e - w));
        col = mix(col, col * 0.42, max(l1, l2 * 0.8));
      }
    } else if (uKind == 7) {                                           // iris
      float l = dot(tex.rgb, vec3(1.0 / 3.0));
      col = l < 0.3 ? mix(uEye[0], uEye[1], l / 0.3) : mix(uEye[1], uEye[2], clamp((l - 0.3) / 0.6, 0.0, 1.0));
    } else if (uKind == 8) { col = tex.rgb; }
    else { col = uFlat; }
    if (vPlate.x > 0.5 && vPlate.z > 0.0 && uKind != 3 && uKind != 4) {   // a cloth outline piece's gold border,
      float e = vPlate.y, w = vPlate.z, aa = fwidth(e) * 1.2 + 1e-5;       // and a fine gold line inside it
      float band = 1.0 - smoothstep(w - aa, w, e);
      float l1 = 1.0 - smoothstep(0.0006, 0.0006 + aa, abs(e - (w + 0.0040)));
      col = mix(col, metal(true, uGold, n, v, lit, -1.0), max(band, l1 * 0.9));
    }
    if (uDecal == 1) {                                                 // a design in the piece's own coordinates:
      vec3 dm = tex.rgb;                                               // R paint, G groove, B gold inlay
      float pm = smoothstep(0.3, 0.7, dm.r), gm = smoothstep(0.3, 0.7, dm.g), au = smoothstep(0.3, 0.7, dm.b);
      if (au > 0.0) col = mix(col, metal(true, uGold, n, v, lit, -1.0), au);
      if (pm > 0.0) {
        vec3 pc = mix(tone(uMotif, 0.70, 0.05, 1.10, 0.62), uMotif, st(lit, 0.42));
        col = mix(col, mix(pc, tone(uMotif, 0.56, 0.03, 0.8, 1.25), st(lit, 0.92)), pm);
      }
      if (gm > 0.0) col = mix(col, col * 0.30, gm);
    }
    if (vEdge > 0.5) {                                                 // the cloth's border band
      vec3 gd = tone(uBand, 0.20, 0.03, 1.0, 0.72);
      col = mix(gd, uBand, st(lit, 0.45)); col = mix(col, tone(uBand, 0.16, 0.03, 0.5, 1.45), st(lit, 0.85));
    }
    if (uKind <= 6) {
      vec3 grade = mix(uAmbient, uKeyCol, st(lit, 0.55));
      col *= uKind == 1 && uSkinRamp == 1 ? mix(vec3(1.0), grade, 0.3) : grade;   // a designed skin ramp takes less of it
      float fr = pow(1.0 - max(dot(n, v), 0.0), 4.0);
      float back = clamp(dot(n, normalize(vec3(0.55, 0.45, -0.35))), 0.0, 1.0);
      col += uRimCol * fr * smoothstep(0.1, 0.5, back);
      if (uKind != 1) col *= 1.0 + (g2 - 0.5) * 0.06;
    }
    gl_FragColor = vec4(clamp(col, 0.0, 1.0), 1.0);
  }`;
const PAINT_COMP = `
  uniform sampler2D tColor; uniform sampler2D tInfo; uniform sampler2D tDepth; uniform vec2 uRes;
  uniform float uNear; uniform float uFar; uniform float uGap; uniform float uSil; uniform float uInner;
  ${HSV}
  float z(vec2 p) { return uNear + texture2D(tDepth, p).x * (uFar - uNear); }
  int rid(vec4 i) { return int(i.r * 255.0 + 0.5); }
  float pid(vec4 i) { return floor(i.g * 255.0 + 0.5) + floor(i.b * 255.0 + 0.5) * 256.0; }
  vec3 ink(vec3 c) { vec3 h = rgb2hsv(c); return hsv2rgb(vec3(h.x, clamp(h.y, 0.20, 0.45), 0.19)); }
  void main() {
    vec2 uv = gl_FragCoord.xy / uRes, px = 1.0 / uRes;
    vec4 inf = texture2D(tInfo, uv);
    if (inf.a < 0.5) {                                          // outer line: grow the silhouette outward
      vec4 best = vec4(0.0); vec2 bq = uv;
      for (int k = 0; k < 12; k++) {
        float a = float(k) * 0.5236;
        for (int s = 1; s <= 2; s++) {
          vec2 q = uv + vec2(cos(a), sin(a)) * uSil * float(s) * 0.5 * px;
          vec4 ni = texture2D(tInfo, q);
          if (ni.a > 0.5) { best = ni; bq = q; }
        }
      }
      if (best.a > 0.5) {
        int r = rid(best);
        if (r >= 4 && r <= 7) { gl_FragColor = vec4(0.0); return; }
        gl_FragColor = vec4(ink(texture2D(tColor, bq).rgb), 1.0); return;
      }
      gl_FragColor = vec4(0.0); return;
    }
    vec3 col = texture2D(tColor, uv).rgb; int r0 = rid(inf); float p0 = pid(inf); float z0 = z(uv);
    bool feature = r0 >= 4 && r0 <= 9;
    if (!feature) {
      for (int k = 0; k < 4; k++) {
        vec2 d = k == 0 ? vec2(1.0, 0.0) : (k == 1 ? vec2(-1.0, 0.0) : (k == 2 ? vec2(0.0, -1.0) : vec2(0.0, 1.0)));
        vec2 q = uv + d * px * uInner;
        vec4 ni = texture2D(tInfo, q);
        if (z(q) > z0 + uGap && pid(ni) != p0) { col = ink(col); break; }
      }
      float acc = 0.0, rad = uSil * 3.0;
      for (int k = 0; k < 8; k++) {
        float a = float(k) * 0.785398 + 0.39;
        vec2 q = uv + vec2(cos(a), sin(a)) * rad * px;
        vec4 ni = texture2D(tInfo, q);
        if (ni.a > 0.5) acc += clamp((z0 - z(q)) / 0.05, 0.0, 1.0);
      }
      col *= 1.0 - 0.22 * acc / 8.0;
      if (r0 == 1) {                                            // the bangs shade the forehead
        float hair = 0.0;
        for (int s = 1; s <= 4; s++) { vec4 a = texture2D(tInfo, uv + vec2(0.0, float(s)) * uSil * px); int ra = rid(a); if (a.a > 0.5 && (ra == 3 || ra == 11)) hair = 1.0; }
        col = mix(col, col * vec3(0.84, 0.74, 0.76), 0.75 * hair);
      }
    }
    gl_FragColor = vec4(col, 1.0);
  }`;

const compCam = new THREE.Camera();
function compPass(fs, uniforms) {
  const mat = new THREE.ShaderMaterial({ uniforms, vertexShader: `void main() { gl_Position = vec4(position.xy, 0.0, 1.0); }`,
                                         fragmentShader: fs, transparent: true });
  const s = new THREE.Scene(); s.add(new THREE.Mesh(new THREE.PlaneGeometry(2, 2), mat));
  return { mat, scene: s };
}

// ---- the renderer ---------------------------------------------------------------------------------------------------
const stageEl = $("stage");
const R = new THREE.WebGLRenderer({ antialias: false, alpha: true, preserveDrawingBuffer: !!SHEET });
R.setClearColor(0x000000, 0);
R.outputColorSpace = THREE.LinearSRGBColorSpace;
stageEl.appendChild(R.domElement);
const paint = compPass(PAINT_COMP, { tColor: { value: null }, tInfo: { value: null }, tDepth: { value: null }, uRes: { value: new THREE.Vector2() },
  uNear: { value: 0.1 }, uFar: { value: 40 }, uGap: { value: 0.012 }, uSil: { value: 2 }, uInner: { value: 1 } });
const ctl = new OrbitControls(camera, R.domElement);
ctl.enableDamping = true; ctl.zoomToCursor = true; ctl.screenSpacePanning = true;
ctl.minZoom = 0.3; ctl.maxZoom = 12;
let freeLook = false;
ctl.addEventListener("start", () => { freeLook = true; });
R.domElement.addEventListener("dblclick", focusAt);
const targets = { rt: null, rtInfo: null, key: "" };
function targetsFor(w, h) {
  const key = `${w}x${h}`;
  if (targets.key === key) return;
  [targets.rt, targets.rtInfo].forEach(t => t && t.dispose());
  const o = { minFilter: THREE.NearestFilter, magFilter: THREE.NearestFilter };
  targets.rt = new THREE.WebGLRenderTarget(w, h, o);
  targets.rtInfo = new THREE.WebGLRenderTarget(w, h, { ...o, depthTexture: new THREE.DepthTexture(w, h) });
  targets.key = key;
}

// ---- cloth -------------------------------------------------------------------------------------------------------
// The skinned cape/tails stay hidden and provide the pinned row (they follow the animated body);
// a plain display mesh in world space shows the simulated cloth. Colliders ride the bones.
const _v = new THREE.Vector3(), _a = new THREE.Vector3(), _ab = new THREE.Vector3(), _cp = new THREE.Vector3();
const _A = new THREE.Vector3(), _B = new THREE.Vector3();
class Cloth {
  constructor(skinned, U, V, trims, capsules, bone, closed = false, hemOnly = false) {
    this.skinned = skinned; this.U = U; this.V = V; this.trims = trims; this.closed = closed; this.hemOnly = hemOnly;
    this.n = skinned.geometry.attributes.position.count;
    this.caps = capsules.map(c => ({ a: bone(c.bones[0]), b: bone(c.bones[1]), r: c.r + 0.006 })).filter(c => c.a && c.b);
    this.x = new Float32Array(this.n * 3); this.prev = new Float32Array(this.n * 3);
    const idx = (i, j) => i * V + j, links = [], bends = [], edge = new Float32Array(this.n);
    for (let i = 0; i < U; i++) for (let j = 0; j < V; j++) {
      // a closed cloth (a skirt) wraps around: the last column links back to the first

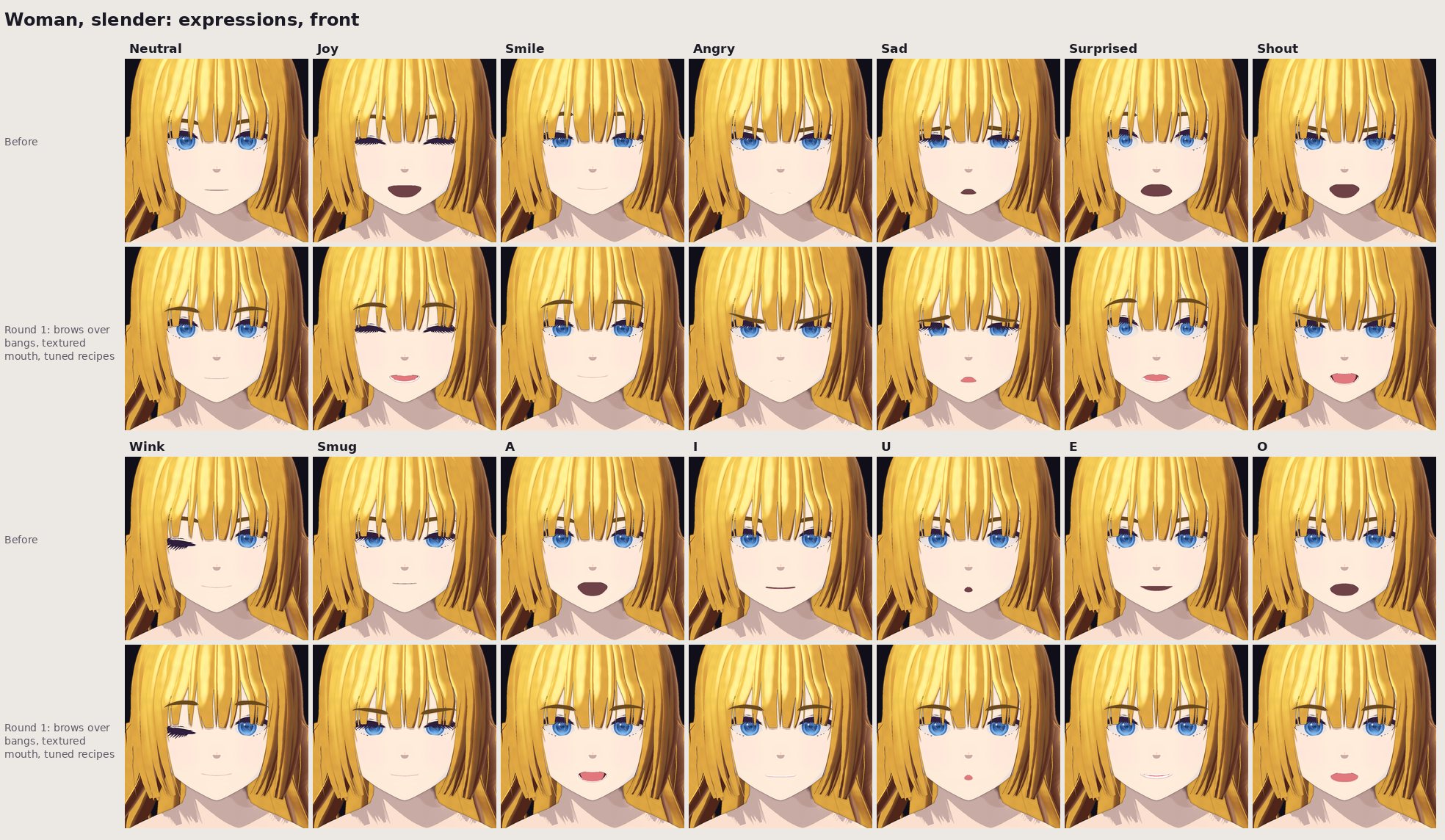

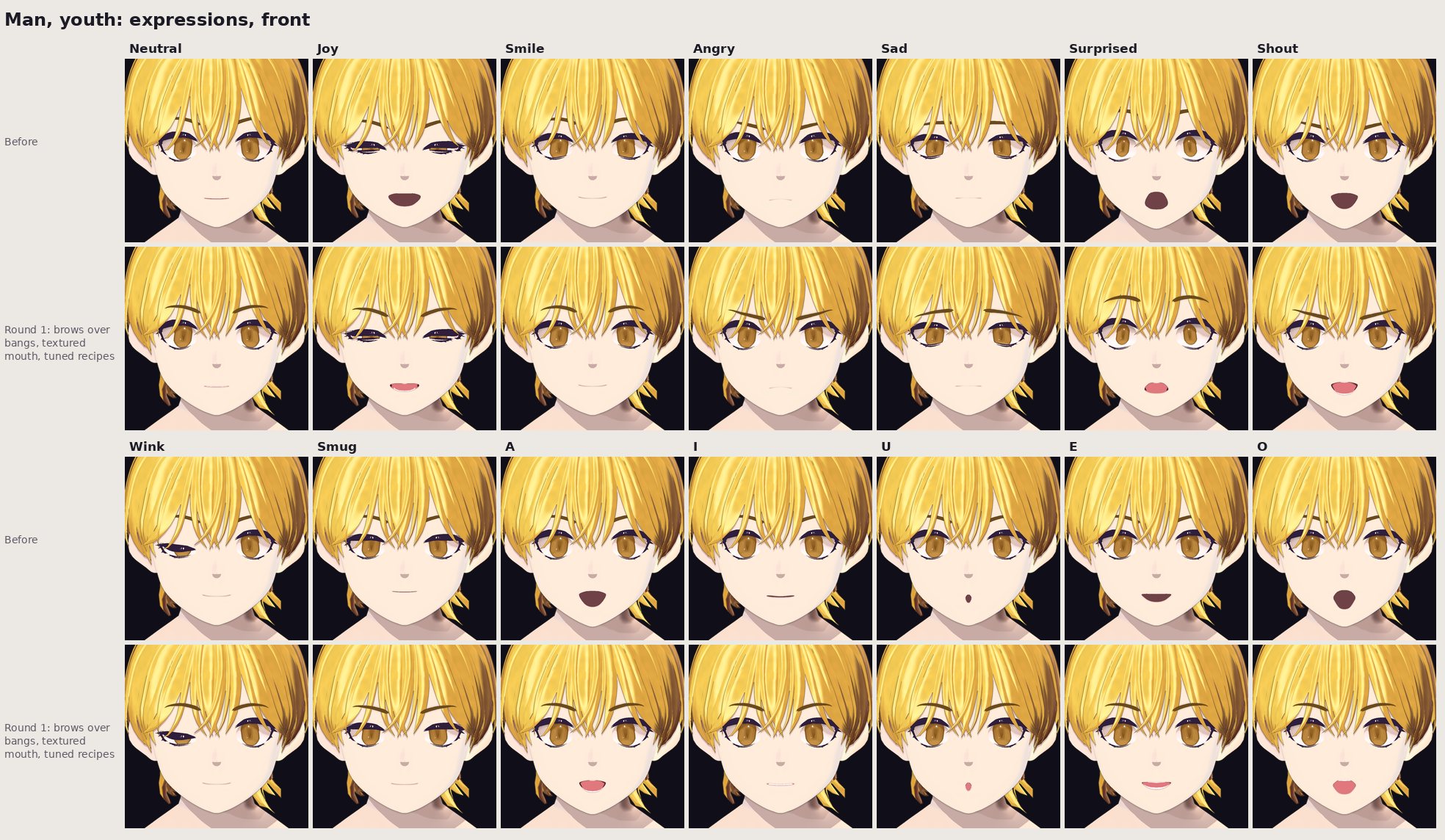

The 57 VRoid expression shapes on our faces (morph targets, applied by tools/vrm.py VRM.primitives; a recipe key
matches a target whose name ends with it):
Fcl_ALL_Angry Fcl_ALL_Fun Fcl_ALL_Joy Fcl_ALL_Neutral Fcl_ALL_Sorrow Fcl_ALL_Surprised
Fcl_BRW_Angry Fcl_BRW_Fun Fcl_BRW_Joy Fcl_BRW_Sorrow Fcl_BRW_Surprised
Fcl_EYE_Angry Fcl_EYE_Close Fcl_EYE_Close_L Fcl_EYE_Close_R Fcl_EYE_Fun Fcl_EYE_Highlight_Hide Fcl_EYE_Iris_Hide
Fcl_EYE_Joy Fcl_EYE_Joy_L Fcl_EYE_Joy_R Fcl_EYE_Natural Fcl_EYE_Sorrow Fcl_EYE_Spread Fcl_EYE_Surprised
Fcl_HA_Fung1 Fcl_HA_Fung1_Low Fcl_HA_Fung1_Up Fcl_HA_Fung2 Fcl_HA_Fung2_Low Fcl_HA_Fung2_Up Fcl_HA_Fung3
Fcl_HA_Fung3_Low Fcl_HA_Fung3_Up Fcl_HA_Hide Fcl_HA_Short Fcl_HA_Short_Low Fcl_HA_Short_Up
Fcl_MTH_A Fcl_MTH_Angry Fcl_MTH_Close Fcl_MTH_Down Fcl_MTH_E Fcl_MTH_Fun Fcl_MTH_I Fcl_MTH_Joy Fcl_MTH_Large
Fcl_MTH_Neutral Fcl_MTH_O Fcl_MTH_SkinFung Fcl_MTH_SkinFung_L Fcl_MTH_SkinFung_R Fcl_MTH_Small Fcl_MTH_Sorrow
Fcl_MTH_Surprised Fcl_MTH_U Fcl_MTH_Up
            elif r == "hair":
                char[mk] = bands(lit[mk], HAIR_BANDS)
            elif r == "cloth":
                char[mk] = bands(lit[mk], CLOTH_BANDS)
            elif r in MATERIALS:
                nn = n[mk]
                back = nn[:, 2] < 0                      # we see the inside of the piece
                lv = np.where(back, (-nn) @ LIGHT, lit[mk])
                c = bands(lv, MATERIALS[r])
                c[back] = [DARKER.get(x_, x_) for x_ in c[back]]
                char[mk] = c
            elif r in ("line",):
                char[mk] = "o"
            elif r == "brow":
                char[mk] = "A"
            elif r == "mouth":
                char[mk] = "1"
            elif r == "white":
                char[mk] = "w"
            elif r == "highlight":
                char[mk] = "w"
42:PRIORITY = {"o": 8, "r": 5, "s": 5, "t": 4, "w": 3, "A": 3, "1": 8}   # features win the 4x4 vote
56:HAIR_BANDS = [(0.86, "E"), (0.66, "D"), (0.42, "C"), (-9, "B")]
975:                        c[on] = "1"
994:                char[mk] = "A"
996:                char[mk] = "1"
1019:            down = {"E": "D", "D": "C", "C": "B", "B": "A"}
1060:            rule[skin & skin1] = "1"
1062:            rule[hair0 & hair1 & (p1 != prim)] = "A"
1118:        c[y, x] = "3" if end else "1"
1143:            c[y, x] = "1" if dark[0] <= u <= dark[1] else "2"

<class 'dict'> ['glb']
total 7476
drwx------ 2 severian severian    4096 Oct 30 12:42 .
drwx------ 4 severian severian    4096 Oct 30 12:43 ..
-rw------- 1 severian severian 4268051 Oct 30 12:42 arm_f_slender.glb.json
-rw------- 1 severian severian 2785655 Oct 30 12:42 arm_m_youth.glb.json
-rw------- 1 severian severian  256105 Oct 30 12:42 camera.json
-rw------- 1 severian severian    5960 Oct 30 12:42 checks.json
-rw------- 1 severian severian  106760 Oct 30 12:42 index.html
-rw------- 1 severian severian  206775 Oct 30 12:42 plains.glb.json
{
 "characters": [
  {
   "name": "arm_m_youth",
   "label": "Man, youth",
   "info": {
    "roles": {
     "face": {
      "mode": "bands",
      "bands": [
       [
        0.8,
        "#fff6d8"
       ],
       [
        0.62,
        "#fbd99c"
       ],
       [
        0.38,
        "#eca067"
       ],
       [
        -9,
        "#b06e4b"
       ]
      ]
     },
     "body": {
      "mode": "bands",
      "bands": [
       [
        0.8,
        "#fff6d8"
       ],
       [
        0.62,
        "#fbd99c"
       ],
       [
        0.38,
        "#eca067"
       ],
       [
        -9

['body:mouth', 'body:iris', 'body:highlight', 'body:face', 'body:white', 'body:brow', 'body:line', 'body:line', 'body:body', 'hair:hair', 'hair:hair', 'underwear:cloth', 'underwear:cloth', 'body:shadow']
[('body', None), ('body', None), ('body', None), ('body', None), ('body', None), ('body', None), ('body', None), ('body', None), ('body', None), ('hair', None), ('hair', None), ('underwear', None), ('underwear', None), ('body', None)]

[redacted: reference rig image (Yin/Yang by DillonGoo, personal-use licence)]

133:    def primitives(self, morphs=None, pose=None):
135:        morphs: {target name substring: weight} applied to meshes that have targets.
141:            names = mesh.get("extras", {}).get("targetNames") or \
142:                mesh["primitives"][0].get("extras", {}).get("targetNames") or []
148:                if morphs and pr.get("targets"):
149:                    for key, wgt in morphs.items():
151:                            if tn.endswith(key) and "POSITION" in pr["targets"][ti]:
152:                                pos += wgt * self.accessor(pr["targets"][ti]["POSITION"])
157:                    Wt = self.accessor(at["WEIGHTS_0"]).astype(np.float64)
171:    def target_names(self):
173:            names = mesh.get("extras", {}).get("targetNames") or \
174:                mesh["primitives"][0].get("extras", {}).get("targetNames")
251:def bone_weight(prim, match):
252:    """Per-vertex total skin weight on bones whose name contains any of `match` (substrings)."""
121:    the winning char per pixel plus the depth / primitive / role of its nearest sample."""
161:#  3. resting expression: VRoid's own shapes (hooded eyes, stern brows) held at a low weight
167:               face_normals=1.0, hair_normals=0.0, shadow_cards=1.0, rest={})
476:    weights at the nearest vertex, so it rides and bends with the skin beneath."""
601:        """A point on the face seen straight on: the nearest surface hit from the front."""
739:        mo = dict(sh["rest"])
1093:    # no triangle contains it (a gap between UV islands): take the nearest vertex in UV space
16:material's own darkest tone: rosy brown in skin, darkest hair tone between locks.
19:steps (yellow-cream → orange → brown → line). Shadows go: under the bangs (cast), the far side
28:**Brows.** Men: heavy, sitting right on the lash line. Women: thin, high.
34:upper left) and a shadow side; the separating line sits on the shadow side. Bangs sweep
41:Heavy builds: round masses. Women: rounder cheeks, more eye white, thin high brows.
52:   separating lines. Then `pix.py shadow` casts the bangs onto the face.
63:- Bangs hanging straight down read as a curtain. Sweep them toward the face's turn.
68:- Bare forehead between bangs looked like light columns. Always run the cast-shadow pass.
96:- **Flat eye plane.** A cylinder-like face squeezes the far eye even at 20° ("cursed"). Keep brow and
121:- **Features from geometry and masks.** Eyes, brows and lashes come from VRoid's alpha-tested face
126:- **Archetypes are shape controls on the mesh** (face length, jaw, chin, cheeks, eyes, brows, nose,
157:  inside the nose-and-mouth window of the shared VRoid face layout, or the ear shading turns brown.
202:- **Cloth in the viewer:** the cape and tails export as grids (`grid`); the browser runs Verlet with
321:  leaves the bangs and side locks.
540:  - Bangs read as separate pointed locks when they are narrow (2.2-2.8 cm) with long tapers.
542:- **Bangs from a study, not a formula.** The user found seven evenly spaced matching points jarring.
550:  `lock(profile=...)` takes a width profile (`hair.clump`). Elaine's bangs: a side part over her
616:- The eyes, brows and mouth are anime drawings in textures, so moving the skull under them changes
633:  smoothed brow strips, and a lip line.
834:brows, mouth and expression shapes) by landmarks onto MakeHuman's skull, keeping MakeHuman's structure and
1164:  length, cheeks, eye size), and leave the jaw, brow and nose to the design.
1231:face, brows, lines, mouth and skull are shaded from normals that point away from a short vertical line inside the
1329:  and the stage's blue shade turned brown skin grey. A ramp per tone, with shade hue nudged warm on people (cool on
1332:  and stopped at a mid brown.

                bust: { ambient: [0.90, 0.90, 0.98], key: [1.03, 1.0, 0.96], rim: [0.24, 0.24, 0.34] } };
const KIND = { cloth: 0, skin: 1, hair: 2, steel: 3, gold: 4, leather: 5, world: 6 };
function paintMaterial(V, role, map, index, infoRole = role, decal = false) {
  const Rl = V.roles[role] || { mode: "flat", color: "#ff00ff" }, P = (V.paint || {})[role];
  const u = { uKind: { value: 9 }, uBase: { value: new THREE.Color(0.8, 0.8, 0.8) }, uKey: { value: KEY.clone() },
    uMap: { value: map || white }, uAlpha: { value: 0 }, uPass: { value: 0 },
    uInfo: { value: new THREE.Vector4(roleId(infoRole) / 255, (index % 256) / 255, Math.floor(index / 256) / 255, 1) },
    uEye: { value: V.roles.iris.colors.map(hex) }, uFlat: { value: new THREE.Color() }, uSkinRef: { value: new THREE.Vector3(0.965, 0.878, 0.80) },
    uGold: { value: hex((V.paint && V.paint.gold && V.paint.gold.base) || "#b08b3f") },
    uAmbient: { value: new THREE.Vector3(1, 1, 1) }, uKeyCol: { value: new THREE.Vector3(1, 1, 1) }, uRimCol: { value: new THREE.Vector3() },
    uGrain: { value: 0.05 }, uFaceTex: { value: 0 }, uDecal: { value: decal ? 1 : 0 }, uBand: { value: null },
    uSkinTone: { value: new THREE.Vector3(1, 1, 1) }, uShadeOnly: { value: 0 },
    uSkinRamp: { value: 0 }, uSkinL: { value: new THREE.Color() }, uSkinS: { value: new THREE.Color() }, uSkinC: { value: new THREE.Color() },
    tCastInfo: { value: null }, tCastDepth: { value: null }, uCastRes: { value: new THREE.Vector2(1, 1) }, uCastOn: { value: 0 },
    uCastNear: { value: 0.1 }, uCastFar: { value: 40 }, uCastPpm: { value: 1 },
    uMotif: { value: hex((V.paint && V.paint.motif && V.paint.motif.base) || "#3a44a0") } };
  if (P) { u.uKind.value = KIND[P.kind] ?? 0; if (P.base) u.uBase.value = hex(P.base); if (P.grain != null) u.uGrain.value = P.grain; }
  else if (Rl.bands) { u.uKind.value = Rl.world ? 6 : 0; u.uBase.value = hex(Rl.bands[Math.min(1, Rl.bands.length - 1)][1]); }
  if (P && P.kind === "world") { u.uKey.value = new THREE.Vector3(...V.sun); u.uGrain.value = 0.12; }
  if (P && P.shade) u.uShadeOnly.value = 1;         // shadow cards: skin, always in its shade tone
  if (P && P.kind === "skin" && P.ramp) {           // a designed ramp: lit, shade, deep shade
    u.uSkinRamp.value = 1; u.uSkinL.value = hex(P.ramp[0]); u.uSkinS.value = hex(P.ramp[1]); u.uSkinC.value = hex(P.ramp[2]);
  }
  if (P && P.kind === "skin" && P.base) {           // skin tone: the base colour against the default light skin
    const c = hex(P.base); u.uSkinTone.value.set(c.r / 0.973, c.g / 0.882, c.b / 0.835);
  }
  if (role === "face" && map) u.uFaceTex.value = 1;
  if (role === "hair" && map) u.uAlpha.value = 1;
  if (role === "iris") { u.uKind.value = 7; u.uAlpha.value = 1; }
  else if (role === "white" || role === "highlight") { u.uKind.value = map ? 8 : 9; if (map) u.uAlpha.value = 1; u.uFlat.value = hex(Rl.color || "#ffffff"); }
  else if (!P && Rl.mode === "flat") { u.uKind.value = 9; u.uFlat.value = hex(Rl.color); if (map) u.uAlpha.value = role === "line" ? 2 : 1; }
  u.uBand.value = u.uGold.value.clone();
  const m = new THREE.ShaderMaterial({ uniforms: u, vertexShader: PAINT_VS, fragmentShader: PAINT_FS, side: THREE.DoubleSide,
                                       extensions: { derivatives: true } });
  // meshes without plate data or a cloth edge read zeros, not whatever another program left in that slot
  m.defaultAttributeValues = { ...m.defaultAttributeValues, _plate: [0, 0, 0, 0], edge: [0] };
  return m;
}

// ---- models ------------------------------------------------------------------------------------------------------
const loader = new GLTFLoader();
309:const SKIN_HEAD = `#include <common>
311:const SKIN_BODY = `#include <beginnormal_vertex>

345:  uniform vec3 uGold; uniform vec3 uAmbient; uniform vec3 uKeyCol; uniform vec3 uRimCol; uniform float uGrain;

built neutral
built joy
built smile
built angry
built sad
built surprised
built shout

real	1m44.552s
user	1m28.765s
sys	1m7.160s

built wink
built smug
built lip_A
built lip_I
built lip_U
built lip_E
built lip_O

real	1m42.031s
user	1m32.035s
sys	1m10.588s
shot r1

real	7m59.116s
user	0m32.270s
sys	0m27.314s
~/Projects/lowmarch-bench/work/b/sheet_r1_woman.png (1968, 1144)
~/Projects/lowmarch-bench/work/b/sheet_r1_youth.png (1968, 1144)

(1938, 1024)

exit=0
The current round makes the brows easier to read, especially for Angry and Surprised, but drawing them over the bangs creates a floating, pasted-on look. The new pink mouths also lose some of the depth and clarity of the darker Before mouths.

**Woman:** Joy and Wink read clearly through the closed eyes; Angry reads through the sharply slanted brows. Neutral and Smile are pleasant but very similar. Sad reads mostly from the brows and small mouth; the eyes still look fairly neutral. Surprised and Shout are harder to tell apart: both mouths are small, horizontal pink shapes, and Surprised lacks a convincing open “O.” Smug reads close to Neutral because the eyes and mouth barely change.

**Youth:** Joy, Angry and Surprised read through their eye and brow shapes. Wink reads, though the closed eye still shows enough iris to look half-lidded. Smile, Sad and Smug are subtle; Smug especially needs a more asymmetric or self-satisfied mouth. Shout looks more like a small smile than a forceful call.

For both bodies, the lip-sync shapes have regressed: A and O are flattened and similarly pink, I is nearly invisible, U is a tiny mark, and E is a thin smile. White rims and dark corner fragments make several mouths look outlined or detached.

The three highest-impact changes for the next round:

1. **Integrate the brows with the hair:** keep their expressive angles, but break or soften strokes where bangs cross them so they don’t appear painted on top.
2. **Restore mouth depth:** use a dark interior with restrained tongue or lip colour; remove the white rims and corner fragments. Give Shout a substantially taller opening.
3. **Separate the phonemes:** make A tall and open, I wide and narrow, U small and rounded, E wide with visible teeth, and O distinctly round.

real	0m14.235s
user	0m0.797s
sys	0m0.729s
