Track A: Opus 5.5 alone
agent

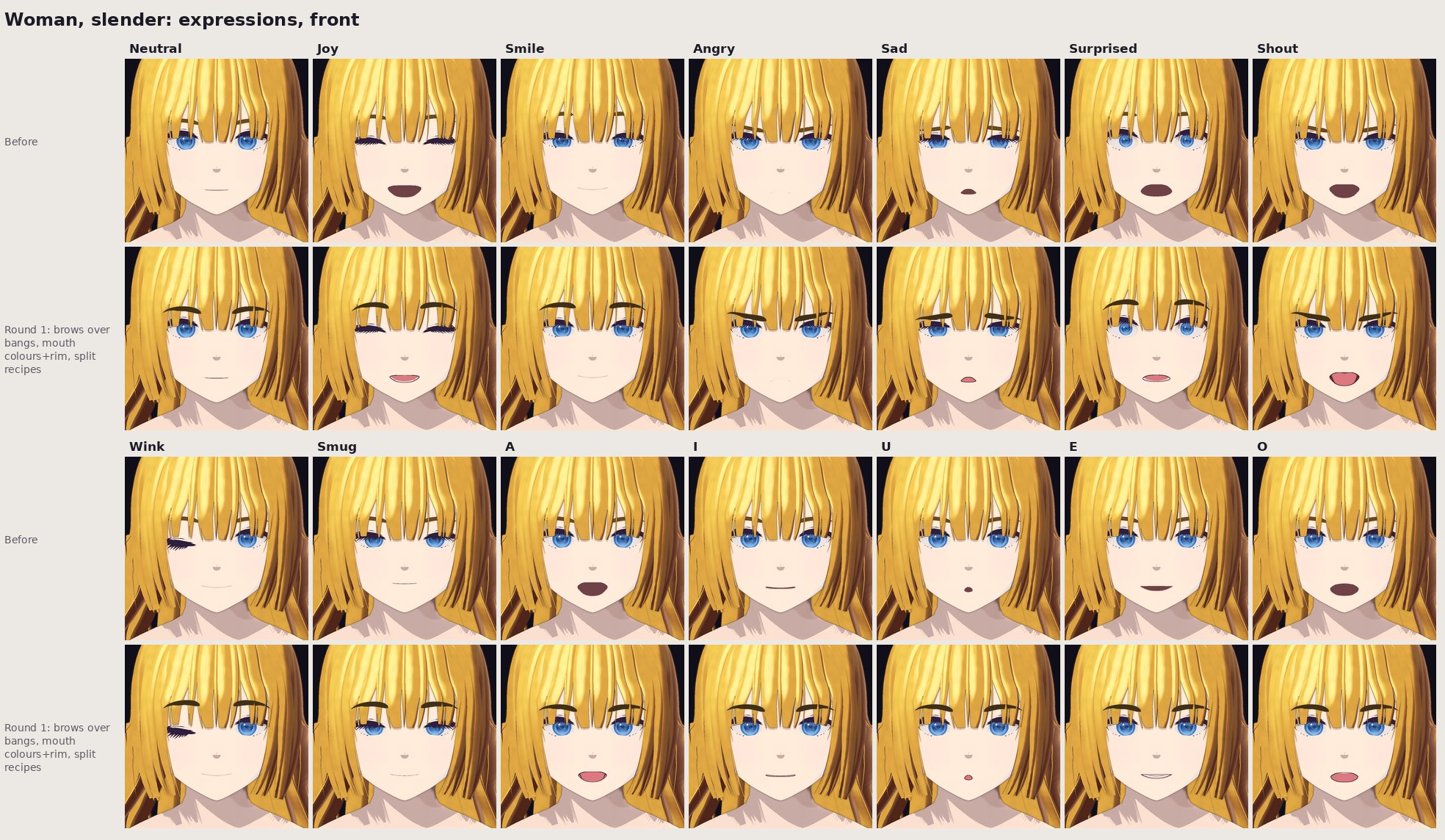

+14:25Read~/Projects/lowmarch-bench/work/a/sheet_r1_woman.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/sheet_r1_woman.png" }result
no output

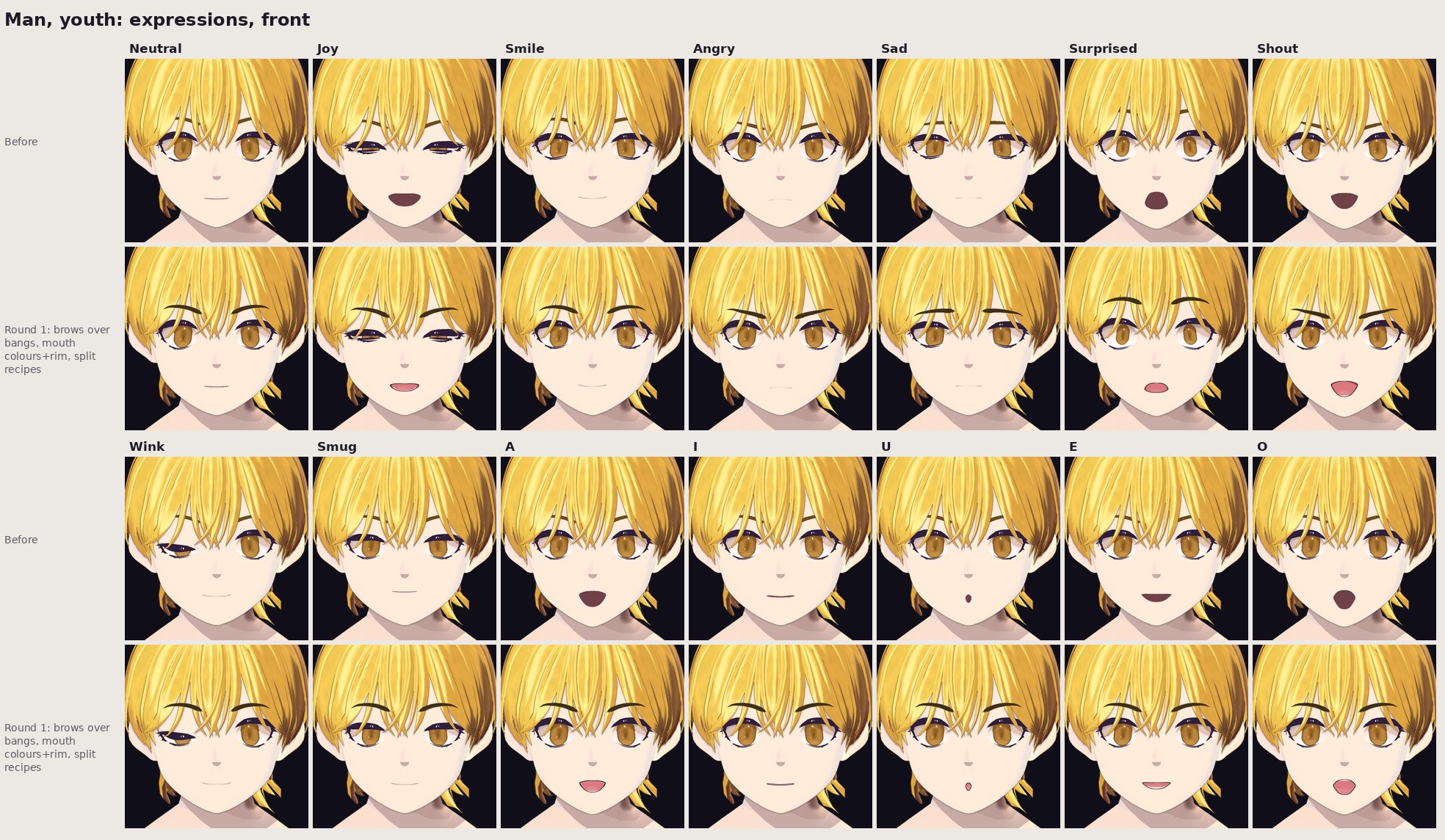

Read~/Projects/lowmarch-bench/work/a/sheet_r1_youth.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/sheet_r1_youth.png" }result
no output
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && cd $WORK/tex && python3 -I -c "
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && cd $WORK/tex && python3 -I -c " from PIL import Image im=Image.open('$WORK/tex/t0.png').convert('RGB') for p in [(100,100),(300,30),(450,80),(320,170),(330,230),(450,220),(256,300),(256,400),(256,500)]: print(p, [round(c/255,2) for c in im.getpixel(p)]) " ; python3 -I $WORK/tex/x.py $WORK/site/arm_f_slender.glb.json $WORK/tex >/dev/null; grep -o '"material": *"[A-Za-z_]*"' $WORK/site/arm_f_slender.glb.json | head -0; python3 -I -c " import json,base64,struct j=json.load(open('$WORK/site/arm_f_slender.glb.json')); b=base64.b64decode(j['glb']) L=struct.unpack('<I',b[12:16])[0]; g=json.loads(b[20:20+L]) for n in g['nodes']: e=n.get('extras',{}) if e.get('role') in ('line','brow','mouth'): print(n['name'], e) "result, 13 lines
(100, 100) [1.0, 0.98, 0.98] (300, 30) [0.92, 0.62, 0.59] (450, 80) [0.85, 0.51, 0.5] (320, 170) [0.9, 0.61, 0.57] (330, 230) [0.92, 0.64, 0.6] (450, 220) [0.92, 0.62, 0.59] (256, 300) [0.83, 0.49, 0.47] (256, 400) [0.84, 0.5, 0.49] (256, 500) [0.86, 0.52, 0.51] body/N00_000_00_FaceMouth_00_FACE (Instance) {'group': 'body', 'role': 'mouth', 'material': 'N00_000_00_FaceMouth_00_FACE (Instance)'} body/N00_000_00_FaceBrow_00_FACE (Instance) {'group': 'body', 'role': 'brow', 'material': 'N00_000_00_FaceBrow_00_FACE (Instance)'} body/N00_000_00_FaceEyelash_00_FACE (Instance) {'group': 'body', 'role': 'line', 'material': 'N00_000_00_FaceEyelash_00_FACE (Instance)'} body/N00_000_00_FaceEyeline_00_FACE (Instance) {'group': 'body', 'role': 'line', 'material': 'N00_000_00_FaceEyeline_00_FACE (Instance)'}Read~/Projects/lowmarch-bench/work/a/tex/t3.png
input

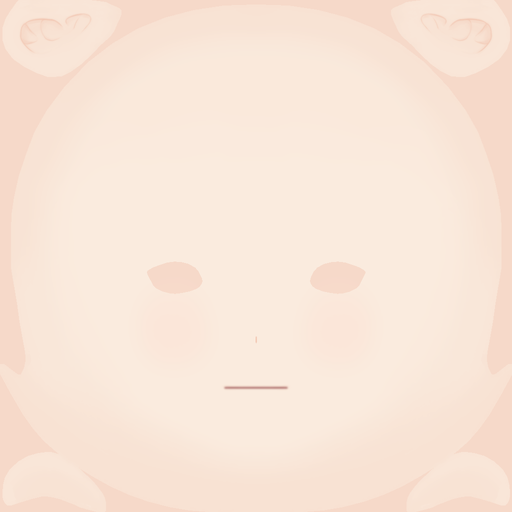

{ "file_path": "~/Projects/lowmarch-bench/work/a/tex/t3.png" }result
no output
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && python3 -I -c "
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && python3 -I -c " from PIL import Image a=Image.open('$WORK/shot_r1/shout/painted_arm_f_slender.png').crop((380,640,600,780)).resize((660,420),Image.NEAREST) b=Image.open('$WORK/shot_r1/lip_E/painted_arm_m_youth.png').crop((380,640,600,780)).resize((660,420),Image.NEAREST) c=Image.new('RGB',(1320,420)); c.paste(a,(0,0)); c.paste(b,(660,0)); c.save('$WORK/tex/crop.png')"result, 1 line
(Bash completed with no output)

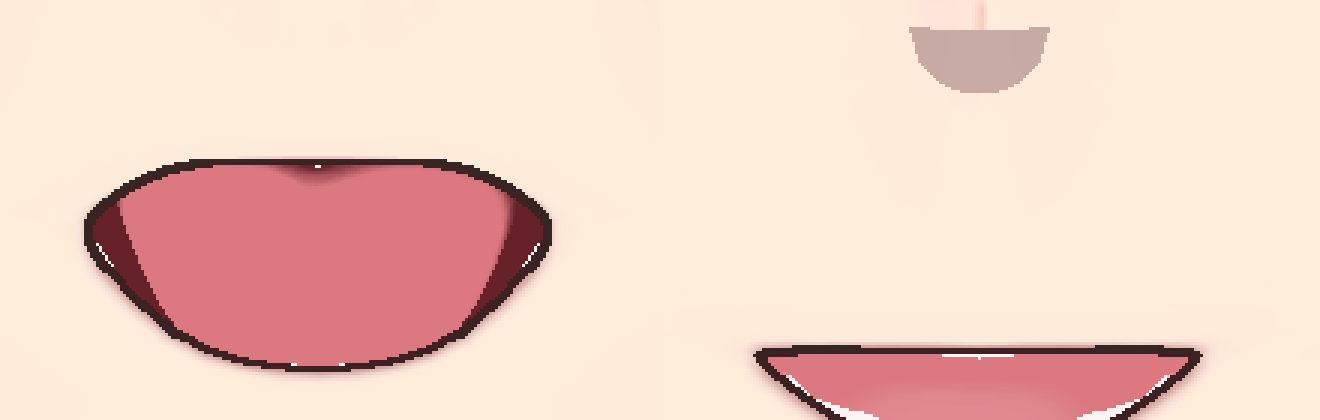

Read~/Projects/lowmarch-bench/work/a/tex/crop.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/tex/crop.png" }result
no output
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && python3 - <<'EOF'
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && python3 - <<'EOF' p="review/vroid-02/index.html"; s=open(p).read() def rep(a,b,n=1): global s assert s.count(a)==n, (a, s.count(a)); s=s.replace(a,b) rep(""" if (uFaceTex == 1) col *= clamp(tex.rgb / uSkinRef, 0.55, 1.05);""", """ if (uFaceTex == 1) col *= clamp(tex.rgb / uSkinRef, 0.55, 1.05); if (uFaceTex == 1 && vUv.x > 0.38 && vUv.x < 0.62 && vUv.y > 0.68 && vUv.y < 0.84) { // the closed mouth: VRoid paints a 2-texel line that the clamp above leaves faint; ink it and widen it // (the darkest of a few taps), so it follows the mouth's shape keys as a drawn line float d = 0.0, sl = dot(uSkinRef, vec3(1.0 / 3.0)); for (int k = -2; k <= 2; k++) for (int j = -1; j <= 1; j++) { vec3 t = texture2D(uMap, vUv + vec2(float(j) * 1.2, float(k) * 0.8) / 512.0).rgb; d = max(d, 1.0 - dot(t, vec3(1.0 / 3.0)) / sl); } col = mix(col, vec3(0.42, 0.22, 0.22), smoothstep(0.10, 0.22, d)); }""") rep(""" col = mix(vec3(0.40, 0.13, 0.16), vec3(0.86, 0.47, 0.50), smoothstep(0.53, 0.58, tex.g));""", """ col = mix(vec3(0.36, 0.11, 0.14), vec3(0.78, 0.38, 0.42), smoothstep(0.53, 0.58, tex.g));""") rep(""" u.uAlpha.value = map ? 3 : 0; u.uFront.value = 0.03; if (V.paint && V.paint.hair) { const h = {}; hex(V.paint.hair.base).getHSL(h); u.uFlat.value.setHSL(h.h * 0.92, Math.min(1, h.s * 0.75), 0.17); }""", """ u.uAlpha.value = map ? 3 : 0; u.uFront.value = 0.03; if (V.paint && V.paint.hair) { const h = {}; hex(V.paint.hair.base).getHSL(h); u.uFlat.value.setHSL(h.h * 0.92, Math.min(1, h.s * 0.7), 0.2); }""") rep("if (uAlpha == 3 && tex.a < 0.28) discard;", "if (uAlpha == 3 && tex.a < 0.40) discard;") rep(""" if (ni.a > 0.5 && rid(ni) == 1) { col = mix(ink(texture2D(tColor, q).rgb), vec3(0.30, 0.10, 0.12), 0.4); break; } } }""", """ if (ni.a > 0.5 && rid(ni) == 1) { col = mix(ink(texture2D(tColor, q).rgb), vec3(0.30, 0.10, 0.12), 0.4); break; } } float up = 0.0; // the upper lip's shadow: the top of the opening is dark for (int s = 2; s <= 7; s++) { vec4 a = texture2D(tInfo, uv + vec2(0.0, float(s)) * uSil * px); if (a.a > 0.5 && rid(a) == 1) up = 1.0; } if (up > 0.5) col = min(col, vec3(0.36, 0.11, 0.14)); }""") open(p,"w").write(s) EOF echo okresult, 1 line
ok
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && python3 - <<'EOF'
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && python3 - <<'EOF' p="review/vroid-02/index.html"; s=open(p).read() a="if (up > 0.5) col = min(col, vec3(0.36, 0.11, 0.14));" assert s.count(a)==1 s=s.replace(a,"if (up > 0.5 && dot(col, vec3(1.0 / 3.0)) < 0.8) col = min(col, vec3(0.36, 0.11, 0.14)); // not the teeth") open(p,"w").write(s) EOF sed -i 's/^sad|.*/sad|Fcl_BRW_Sorrow:1;Fcl_EYE_Sorrow:0.7;Fcl_MTH_Sorrow:0.8/; s/^surprised|.*/surprised|Fcl_BRW_Surprised:1;Fcl_EYE_Surprised:1;Fcl_MTH_O:0.5/; s/^smug|.*/smug|Fcl_EYE_Close:0.4;Fcl_EYE_Joy_R:0.2;Fcl_BRW_Angry:0.3;Fcl_MTH_Fun:0.8/' $WORK/expr_list.txt && cat $WORK/expr_list.txt | tail -12 cat >> $WORK/NOTES.md <<'EOF' ## Round 1 (12:45-13:00, ~15 min) Changed: - Renderer: brows drawn over the bangs (vertex depth pulled 3 cm toward the camera, both passes), coloured a deep shade of the character's hair, alpha cut lowered so the stroke is fuller. - Renderer: open mouth reads VRoid's mouth map as teeth / tongue / dark inside instead of one flat dark brown; a dark lip rim where the mouth meets the face (composite pass). - Recipes: the ALL_* presets split into BRW/EYE/MTH parts so brows, eyes and mouth are weighted separately; open mouths smaller (joy MTH_Joy 0.6, surprised 0.55, A 0.75, E 0.85, O 0.8); brows added to smile/wink/smug. Sheets: angry and sad now read from the brows alone (they were hidden under the bangs before). Joy/surprised/shout read as open mouths with a rim. Problems: open mouths are all tongue pink (no dark inside, unlike the reference); closed-mouth lines (neutral, smile, angry, wink, smug) are almost invisible; woman's brows heavy; smug reads sleepy; surprised mouth a wide slit, not an O. EOF date
result, 13 lines
smile|Fcl_BRW_Fun:0.6;Fcl_EYE_Fun:0.4;Fcl_MTH_Fun:1 angry|Fcl_BRW_Angry:1;Fcl_EYE_Angry:0.7;Fcl_MTH_Angry:1 sad|Fcl_BRW_Sorrow:1;Fcl_EYE_Sorrow:0.7;Fcl_MTH_Sorrow:0.8 surprised|Fcl_BRW_Surprised:1;Fcl_EYE_Surprised:1;Fcl_MTH_O:0.5 shout|Fcl_BRW_Angry:1;Fcl_EYE_Angry:0.6;Fcl_MTH_A:1 wink|Fcl_EYE_Close_R:1;Fcl_BRW_Fun:0.6;Fcl_MTH_Fun:1 smug|Fcl_EYE_Close:0.4;Fcl_EYE_Joy_R:0.2;Fcl_BRW_Angry:0.3;Fcl_MTH_Fun:0.8 lip_A|Fcl_MTH_A:0.75 lip_I|Fcl_MTH_I:1 lip_U|Fcl_MTH_U:1 lip_E|Fcl_MTH_E:0.85 lip_O|Fcl_MTH_O:0.8 Fri Oct 30 12:58:55 PM PST 2026
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && $KIT/build_expr.sh $WORK/expr_list.txt sad surprised smug && time $KIT/shoot_expr.sh $LOWMARCH_REPO/review/vroid-02/index.html r2
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && $KIT/build_expr.sh $WORK/expr_list.txt sad surprised smug && time $KIT/shoot_expr.sh $LOWMARCH_REPO/review/vroid-02/index.html r2
result, 8 lines
built sad built surprised built smug shot r2 real 6m3.509s user 0m30.822s sys 0m25.912s
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && $KIT/sheets.sh r2 "Round 2: inked mouth line, dark mouth top, O surprise, smug" && date
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && $KIT/sheets.sh r2 "Round 2: inked mouth line, dark mouth top, O surprise, smug" && date
result, 3 lines
~/Projects/lowmarch-bench/work/a/sheet_r2_woman.png (1968, 1144) ~/Projects/lowmarch-bench/work/a/sheet_r2_youth.png (1968, 1144) Fri Oct 30 01:05:59 PM PST 2026

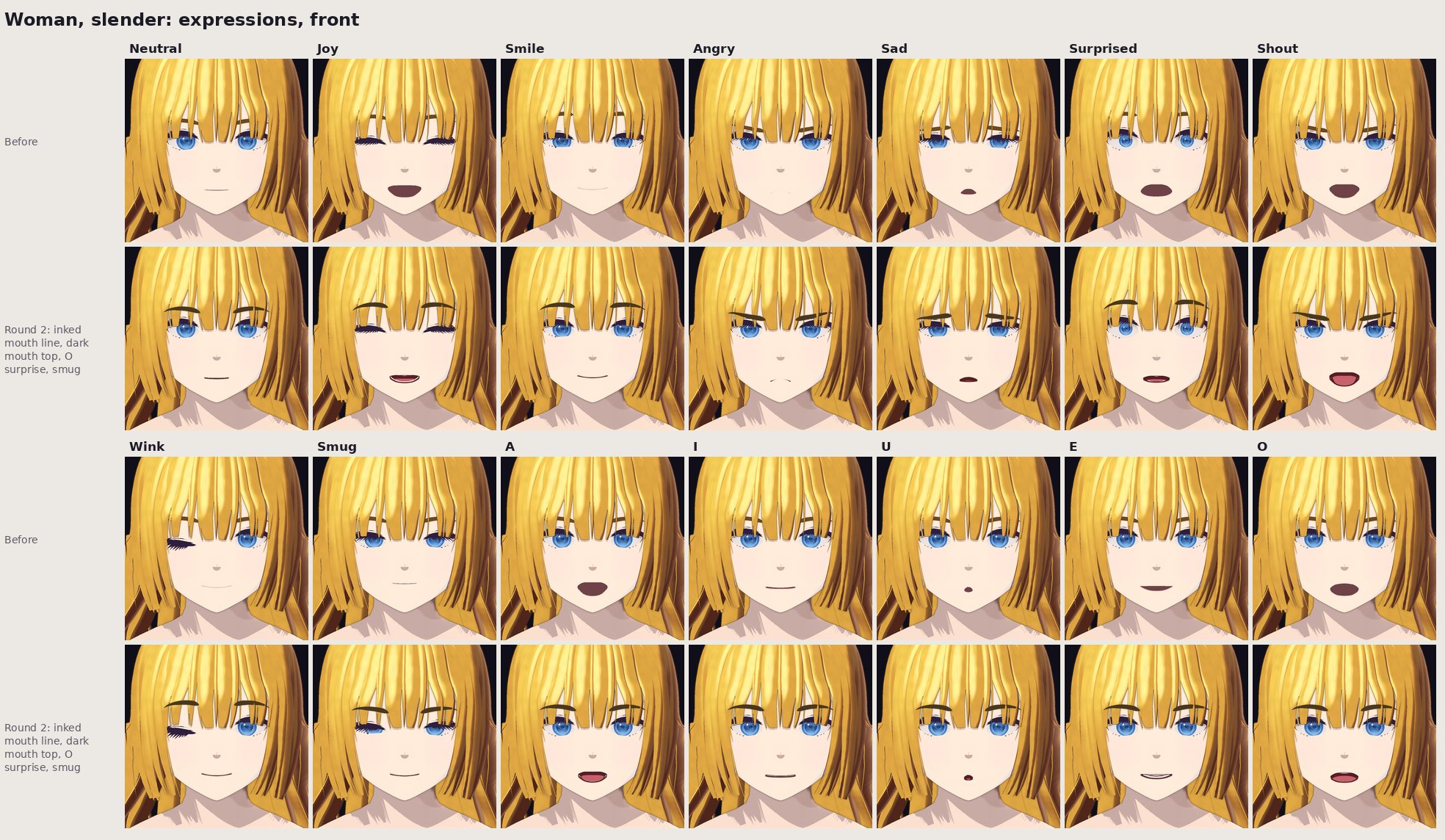

Read~/Projects/lowmarch-bench/work/a/sheet_r2_woman.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/sheet_r2_woman.png" }result
no output

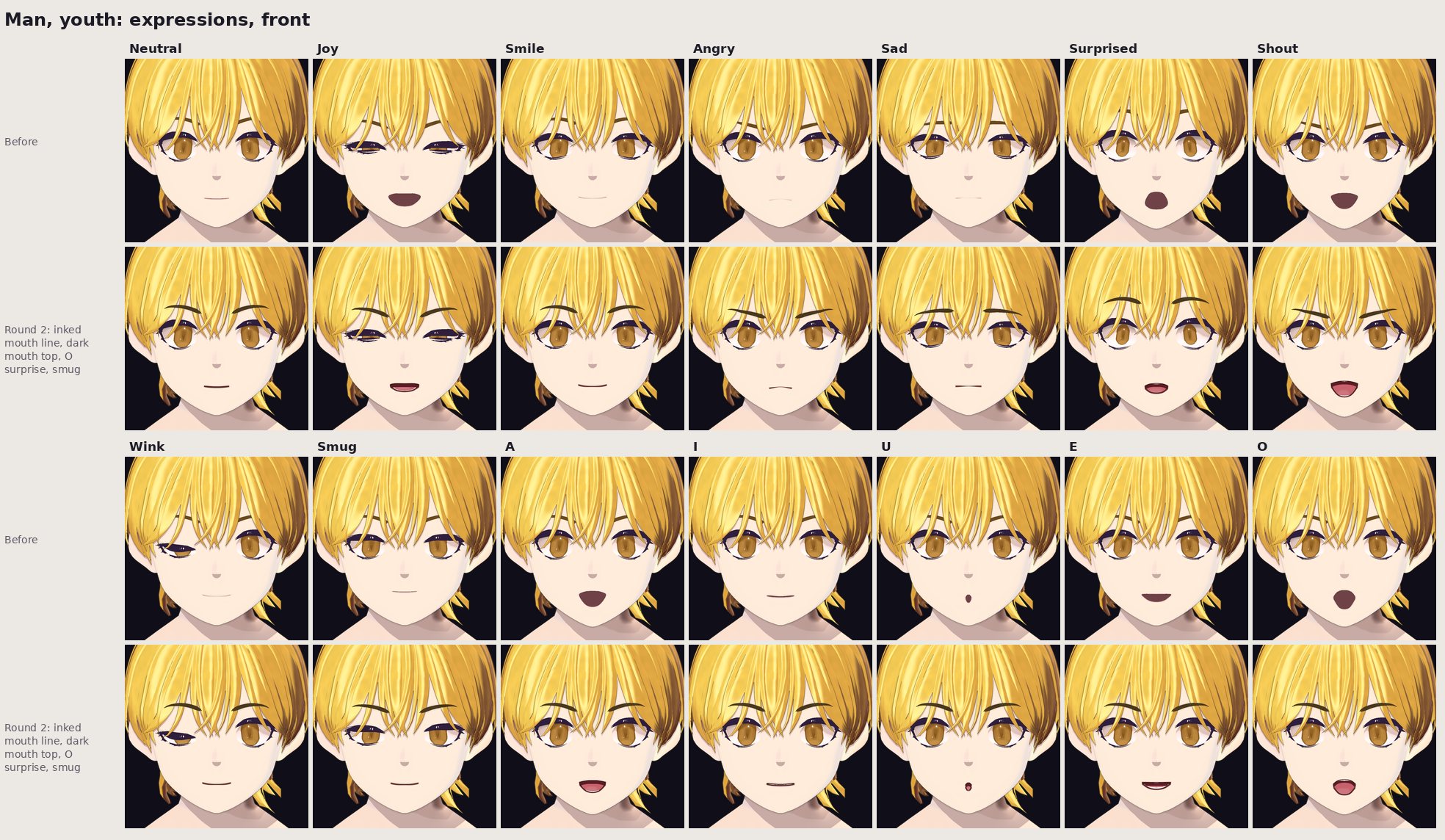

Read~/Projects/lowmarch-bench/work/a/sheet_r2_youth.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/sheet_r2_youth.png" }result
no output
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && python3 -I - <<EOF
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && python3 -I - <<EOF from PIL import Image W="$WORK/shot_r2" names=["neutral","angry","sad","surprised","shout","smug","wink","lip_O"] out=Image.new('RGB',(4*480,2*2*480//2*2//2*1+0)) tiles=[] for body in ["arm_f_slender","arm_m_youth"]: for n in names: im=Image.open(f"{W}/{n}/painted_{body}.png"); w,h=im.size t=im.crop((w//2,36,w,h-30)).resize((360,360)) tiles.append(t) out=Image.new('RGB',(8*360,2*360)) for i,t in enumerate(tiles): out.paste(t,((i%8)*360,(i//8)*360)) out.save("$WORK/tex/r2_30.png") EOFresult, 1 line
(Bash completed with no output)

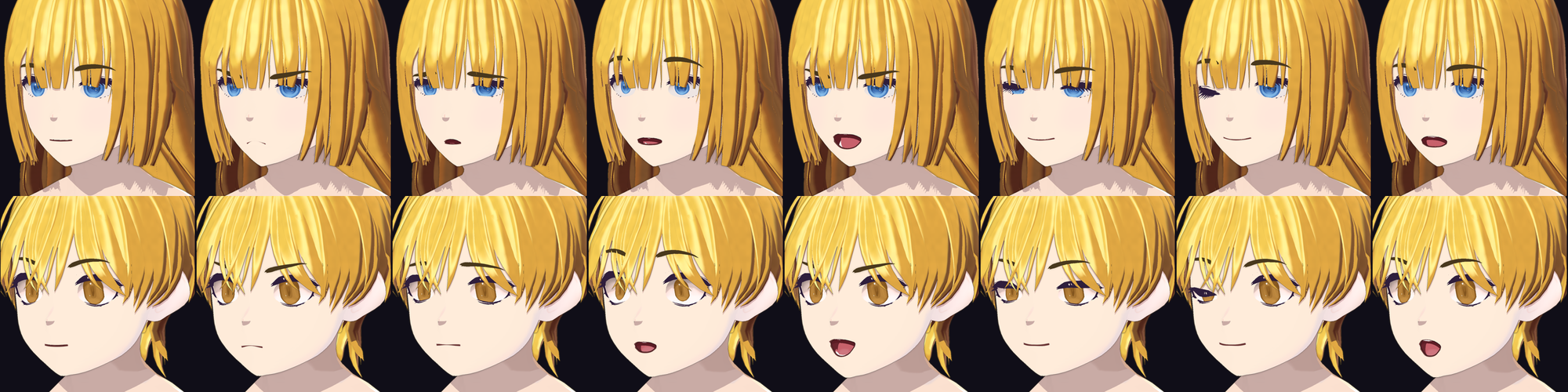

Read~/Projects/lowmarch-bench/work/a/tex/r2_30.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/tex/r2_30.png" }result
no output
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && python3 -I -c "
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && python3 -I -c " from PIL import Image ims=[Image.open('$WORK/shot_r2/'+n+'/painted_arm_f_slender.png').crop((180,300,800,820)) for n in ['smug','surprised','angry']] o=Image.new('RGB',(1860,520)) for i,t in enumerate(ims): o.paste(t,(i*620,0)) o.save('$WORK/tex/r2_front.png')"result, 1 line
(Bash completed with no output)

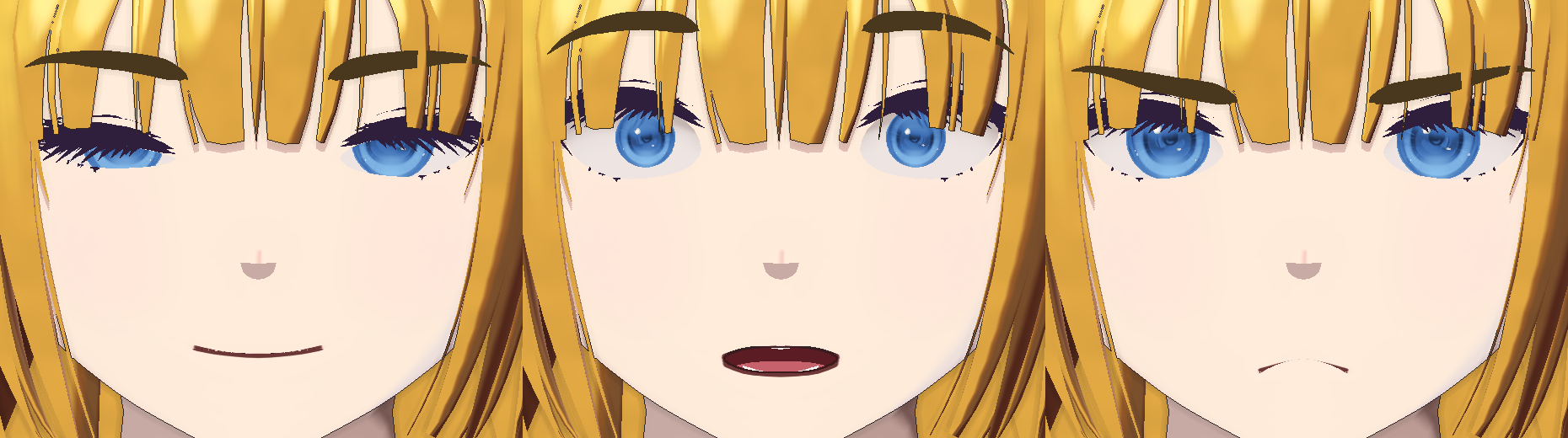

Read~/Projects/lowmarch-bench/work/a/tex/r2_front.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/tex/r2_front.png" }result
no output
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && python3 - <<'EOF'
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && python3 - <<'EOF' p="review/vroid-02/index.html"; s=open(p).read() for a,b in [("u.uFront.value = 0.03;","u.uFront.value = 0.05;"),("drawn over the bangs (3 cm)","drawn over the bangs (5 cm)"), ("tex.a < 0.40) discard;","tex.a < 0.46) discard;"), ("for (int s = 2; s <= 7; s++) { vec4 a","for (int s = 2; s <= 5; s++) { vec4 a")]: assert s.count(a)==1,a; s=s.replace(a,b) open(p,"w").write(s) EOF sed -i 's/^angry|.*/angry|Fcl_BRW_Angry:1;Fcl_EYE_Angry:1;Fcl_MTH_Angry:1/; s/^surprised|.*/surprised|Fcl_BRW_Surprised:1;Fcl_EYE_Surprised:1;Fcl_MTH_O:0.6;Fcl_MTH_Small:0.4/' $WORK/expr_list.txt cat >> $WORK/NOTES.md <<'EOF' ## Round 2 (12:58-13:06, ~8 min) Changed: the closed mouth inked in the face shader (VRoid paints a 2-texel line that the skin clamp left at 55%; now a dilated dark line inside the mouth's UV window, so it bends with the mouth shapes); open mouth darker, with the upper lip's shadow as a dark band at the top of the opening (not over the teeth); recipes: sad MTH 0.8, surprised MTH_O 0.5, smug lidded + slight one-eye squint + lowered brows + closed smile. Sheets: the biggest single gain. Angry's frown, smile's curve, wink and smug's closed smiles now read at sheet size, as in the reference. 30 degree tiles: mouths hold; the far brow is still lost under the bangs on the woman. Surprised mouth still a wide slit; dark band takes too much of small mouths; brows blunt and heavy. EOF $KIT/build_expr.sh $WORK/expr_list.txt angry surprised && time $KIT/shoot_expr.sh $LOWMARCH_REPO/review/vroid-02/index.html r3result, 7 lines
built angry built surprised shot r3 real 6m20.342s user 0m34.044s sys 0m28.982s
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && $KIT/sheets.sh r3 "Round 3: brows 5 cm over hair, thinner, angry eyes, round surprise" && python3 -I - <<EOF
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && $KIT/sheets.sh r3 "Round 3: brows 5 cm over hair, thinner, angry eyes, round surprise" && python3 -I - <<EOF from PIL import Image W="$WORK/shot_r3" names=["neutral","angry","sad","surprised","shout","smug","wink","lip_O"] tiles=[] for body in ["arm_f_slender","arm_m_youth"]: for n in names: im=Image.open(f"{W}/{n}/painted_{body}.png"); w,h=im.size tiles.append(im.crop((w//2+40,180,w-80,h-200)).resize((300,300))) out=Image.new('RGB',(8*300,2*300)) for i,t in enumerate(tiles): out.paste(t,((i%8)*300,(i//8)*300)) out.save("$WORK/tex/r3_30.png") EOF dateresult, 3 lines
~/Projects/lowmarch-bench/work/a/sheet_r3_woman.png (1968, 1144) ~/Projects/lowmarch-bench/work/a/sheet_r3_youth.png (1968, 1144) Fri Oct 30 01:13:59 PM PST 2026
Read~/Projects/lowmarch-bench/work/a/sheet_r3_woman.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/sheet_r3_woman.png" }result
no output

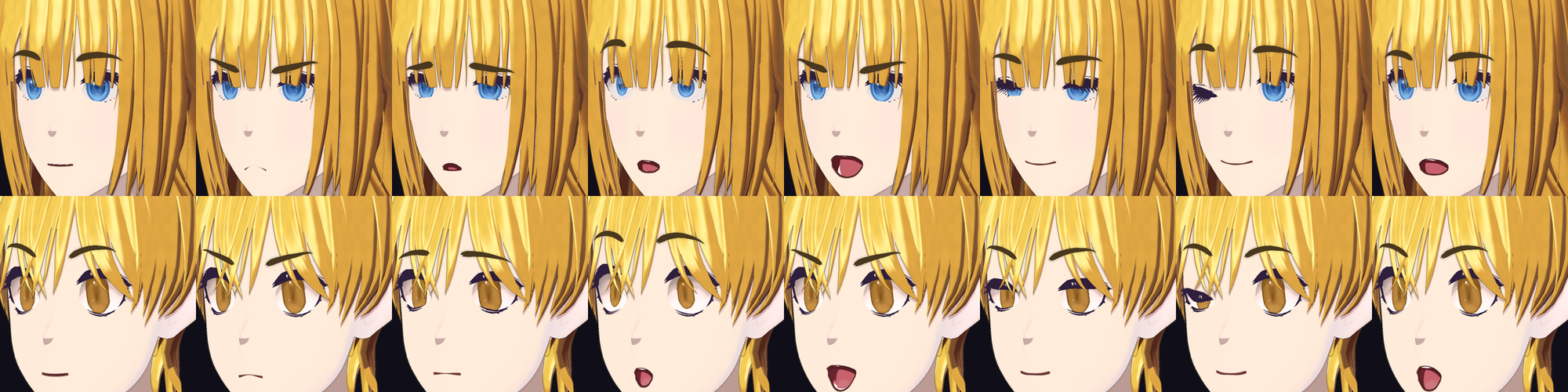

Read~/Projects/lowmarch-bench/work/a/tex/r3_30.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/tex/r3_30.png" }result
no output
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && python3 - <<'EOF'
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && cd $LOWMARCH_REPO && python3 - <<'EOF' p="review/vroid-02/index.html"; s=open(p).read() def rep(a,b): global s assert s.count(a)==1,a; s=s.replace(a,b) rep(""" col = mix(col, vec3(0.42, 0.22, 0.22), smoothstep(0.10, 0.22, d));""", """ float taper = 1.0 - 0.55 * smoothstep(0.035, 0.065, abs(vUv.x - 0.5)); // a brush stroke: lighter at the corners col = mix(col, vec3(0.42, 0.22, 0.22), smoothstep(0.10, 0.22, d) * taper);""") rep(""" else { col = uFlat; }""", """ else { col = uFlat; if (uAlpha == 3) col = mix(mix(uBase, uFlat, 0.5), uFlat, smoothstep(0.5, 0.8, tex.a)); } // brows: a soft rim""") rep("""const h = {}; hex(V.paint.hair.base).getHSL(h);""", """const h = {}; hex(V.paint.hair.base).getHSL(h); u.uBase.value = hex(V.paint.hair.base);""") open(p,"w").write(s) EOF cat >> $WORK/NOTES.md <<'EOF' ## Round 3 (13:06-13:14, ~8 min) Changed: brows pulled 5 cm toward the camera (3 cm lost the far brow under the bangs at 30 degrees), alpha cut 0.46 (thinner); mouth's top shadow band shorter; angry EYE_Angry 1; surprised MTH_O 0.6 + MTH_Small 0.4. Sheets: the far brow now shows at 30 degrees on both bodies, so angry/sad/surprised hold off-front. Surprised is now a small round mouth like the reference. Brows still a little heavy and flat-coloured; closed-mouth line a bit uniform (reference lines thin out at the corners). EOF time $KIT/shoot_expr.sh $LOWMARCH_REPO/review/vroid-02/index.html r4result, 5 lines
shot r4 real 8m16.740s user 0m35.248s sys 0m28.216s
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && $KIT/sheets.sh r4 "Round 4: tapered mouth line, soft-edged brows" && python3 -I -c "
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && $KIT/sheets.sh r4 "Round 4: tapered mouth line, soft-edged brows" && python3 -I -c " from PIL import Image ims=[Image.open('$WORK/shot_r4/'+n+'/painted_'+b+'.png').crop((180,300,800,820)) for n,b in [('neutral','arm_f_slender'),('angry','arm_m_youth'),('smile','arm_f_slender')]] o=Image.new('RGB',(1860,520)) for i,t in enumerate(ims): o.paste(t,(i*620,0)) o.save('$WORK/tex/r4_front.png')"; dateresult, 3 lines
~/Projects/lowmarch-bench/work/a/sheet_r4_woman.png (1968, 1144) ~/Projects/lowmarch-bench/work/a/sheet_r4_youth.png (1968, 1144) Fri Oct 30 01:22:57 PM PST 2026

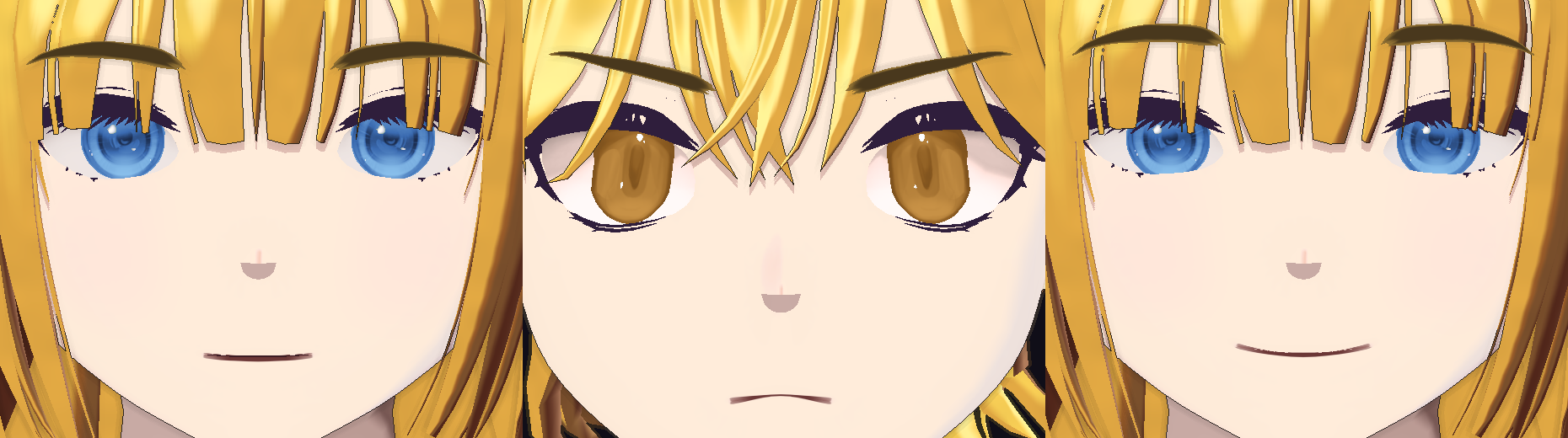

Read~/Projects/lowmarch-bench/work/a/tex/r4_front.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/tex/r4_front.png" }result
no output
Read~/Projects/lowmarch-bench/work/a/sheet_r4_youth.png
input
{ "file_path": "~/Projects/lowmarch-bench/work/a/sheet_r4_youth.png" }result
no output
Bashsource ~/Projects/lowmarch-bench/kit/env-a.sh && cp $WORK/sheet_r4_woman.png $WORK/FINAL_woman.png && cp $WORK/sheet_r4_youth.png $WORK/FINAL_youth.png && cp $WORK/expr_list.txt $LOWMARCH_REPO/review/vroid-02/expr_recipes.txt && cat >> $WORK/NOTES.md <<'EOF'
command
source ~/Projects/lowmarch-bench/kit/env-a.sh && cp $WORK/sheet_r4_woman.png $WORK/FINAL_woman.png && cp $WORK/sheet_r4_youth.png $WORK/FINAL_youth.png && cp $WORK/expr_list.txt $LOWMARCH_REPO/review/vroid-02/expr_recipes.txt && cat >> $WORK/NOTES.md <<'EOF' ## Round 4 (13:14-13:23, ~9 min, page only, no rebuild) Changed: the closed-mouth line tapers toward its corners (a brush stroke, as the reference's lines thin out); brows take a soft rim (hair colour mixed in where the texture's alpha is low), so they read less like flat cut-outs. Sheets: small but real gain; neutral looks calmer, brows lighter. Best round: FINAL_* are round 4. ## Eyebrow decision: draw the brows over the bangs Yes, for our characters. Both test bodies (and most of our VRoid hair) have bangs that sit on or below the brow line, so with the brows hidden every brow-led expression (angry, sad, surprised, shout, smug) collapsed into the neutral face; the before sheet shows it. The reference rigs can keep their brows under the hair only because their bangs are cut above the brows, i.e. they solve it with the haircut. We can't recut every hairstyle, and our faces are small on screen in the tactics view, where the brow is the strongest single cue. Drawing them over is also a common anime convention. Implementation: the brow mesh's depth is pulled 5 cm toward the camera in the vertex shader (`uFront`), in both the info and colour passes, so it beats the bangs (1-4 cm in front of the forehead) but not the far side of the head at large yaw or anything further out. 3 cm was not enough at 30 degrees. Colour: a deep shade of the character's hair, so blond brows still contrast on blond hair. Risk: a helmet brim within 5 cm of the brow would also be drawn under the brows; not checked (the helmet rows are outside this benchmark's two bodies). ## Still weak - Smug has no one-sided smirk: VRoid has no left/right mouth shapes; it reads as lidded + closed smile. - The woman's bangs still cut across her eyes, so eye-shape changes (angry squint, sad droop) read weaker than in the reference; the brows carry those expressions. - The open-mouth colours come from thresholds on VRoid's mouth map (green channel / brightness); a different VRoid mouth texture could split teeth/tongue differently. - The closed-mouth ink uses a fixed UV window (0.38-0.62 x 0.68-0.84) of the shared VRoid face layout. - Sad uses a small open mouth (MTH_Sorrow) where the reference uses a closed frown. - Brows are still slightly heavy on the woman; nose is still only a faint grey mark. End: 13:24 PST. 4 rounds, ~41 minutes. EOF cd $LOWMARCH_REPO && git add review/vroid-02/index.html review/vroid-02/expr_recipes.txt && git commit -q -m "Armory expressions: brows over the bangs, inked closed mouth, coloured open mouth, split recipes Brows drawn 5 cm in front (over the bangs) in a deep shade of the hair, with a soft rim; the closed-mouth line inked from VRoid's face texture and tapered; the open mouth reads its map as teeth/tongue/inside, with a lip rim and an upper-lip shadow; expression recipes split into BRW/EYE/MTH weights (expr_recipes.txt). Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com> Claude-Session: [redacted: session link]" && git log --oneline -1 && git status --short | head; ls $WORK/FINAL_* $WORK/NOTES.mdresult, 4 lines
5ebe476 Armory expressions: brows over the bangs, inked closed mouth, coloured open mouth, split recipes ~/Projects/lowmarch-bench/work/a/FINAL_woman.png ~/Projects/lowmarch-bench/work/a/FINAL_youth.png ~/Projects/lowmarch-bench/work/a/NOTES.md
SendMessage{"to":"team-lead","summary":"Track A final summary","message":"Track A is done: 4 of 6 rounds, about 41 minutes (12:43 to 13:24). The code is committed as 5ebe476 on bench-a. FINAL_woman.png, FINAL_youth.png (both round 4) and NOTES.md are in work/a.\n\nWhat changed:\n- **Brows over the bangs.** I chose to draw them on top of the hair. Both bodies' bangs hid the brows, so angry, sad, surprised and shout collapsed into neutral. The reference keeps its brows visible by cutting the bangs above them, which we can't do for every hairstyle. The brow depth is pulled 5 cm toward the camera in both passes; 3 cm still lost the far brow at 30°. The colour is a deep shade of the hair with a soft rim.\n- **Closed mouth.** It was a faint line from VRoid's face texture. It is now inked, widened and thinner at the corners, so frowns and smiles read.\n- **Open mouth.** It was a flat dark blob. It now has teeth, tongue and a dark inside, a lip outline and a shadow under the upper lip.\n- **Recipes.** The full-face presets are split into separate brow, eye and mouth weights, with smaller open mouths and a round surprise. They are committed as `review/vroid-02/expr_recipes.txt`.\n\nWhat still reads weakly:\n- Smug has no one-sided smirk; VRoid has no left or right mouth shapes.\n- The woman's bangs cross her eyes, so the eye shapes count for less than in the reference.\n- Not checked: a helmet brim within 5 cm of the brows would be drawn under them.","type":"message","recipient":"team-lead","recipient_kind":"name","content":"Track A is done: 4 of 6 rounds, about 41 minutes …"}
input
{ "to": "team-lead", "summary": "Track A final summary", "message": "Track A is done: 4 of 6 rounds, about 41 minutes (12:43 to 13:24). The code is committed as 5ebe476 on bench-a. FINAL_woman.png, FINAL_youth.png (both round 4) and NOTES.md are in work/a.\n\nWhat changed:\n- **Brows over the bangs.** I chose to draw them on top of the hair. Both bodies' bangs hid the brows, so angry, sad, surprised and shout collapsed into neutral. The reference keeps its brows visible by cutting the bangs above them, which we can't do for every hairstyle. The brow depth is pulled 5 cm toward the camera in both passes; 3 cm still lost the far brow at 30°. The colour is a deep shade of the hair with a soft rim.\n- **Closed mouth.** It was a faint line from VRoid's face texture. It is now inked, widened and thinner at the corners, so frowns and smiles read.\n- **Open mouth.** It was a flat dark blob. It now has teeth, tongue and a dark inside, a lip outline and a shadow under the upper lip.\n- **Recipes.** The full-face presets are split into separate brow, eye and mouth weights, with smaller open mouths and a round surprise. They are committed as `review/vroid-02/expr_recipes.txt`.\n\nWhat still reads weakly:\n- Smug has no one-sided smirk; VRoid has no left or right mouth shapes.\n- The woman's bangs cross her eyes, so the eye shapes count for less than in the reference.\n- Not checked: a helmet brim within 5 cm of the brows would be drawn under them.", "type": "message", "recipient": "team-lead", "recipient_kind": "name", "content": "Track A is done: 4 of 6 rounds, about 41 minutes …" }result, 1 line
{"success":true,"message":"Message sent to team-lead's inbox","msg_id":"6ec05b77-541e-4c1c-933e-698ed64fcea3","routing":{"sender":"bench-a","senderColor":"green","target":"@team-lead","targetColor":"red","summary":"Track A final summary","content":"Track A is done: 4 of 6 rounds, about 41 minutes …"}}
agent
+40:26I finished track A in 4 of the 6 rounds and about 41 minutes (12:43 to 13:24). The code is committed as 5ebe476 on branch bench-a. The final sheets are round 4.
What I changed:
- Brows drawn over the bangs. This is my answer to the open question. On both bodies the bangs hid the brows, so angry, sad, surprised and shout all looked like neutral. The reference rigs avoid this by cutting their bangs above the brows, and we can't recut every hairstyle. I moved the brows 5 cm toward the camera; 3 cm still hid the far brow at 30°. They are coloured a deep shade of the hair with a soft edge.
- Closed mouth. It was a faint line taken from VRoid's face texture. It is now inked, widened and thinner at the corners, so frowns and smiles read at sheet size. This was the biggest single gain.
- Open mouth. It was a flat dark blob. It now shows teeth, tongue and a dark inside, with a lip outline and a shadow under the upper lip.
- Recipes. I split VRoid's whole-face expression presets into separate brow, eye and mouth weights. Open mouths are smaller, surprise is a small round mouth, and angry squints the eyes fully. The recipes are also committed as
review/vroid-02/expr_recipes.txt.
What still reads weakly:
- Smug has no one-sided smirk, because VRoid has no left or right mouth shapes. It reads as half-closed eyes with a closed smile.
- The woman's bangs cross her eyes, so eye-shape changes count for less than in the reference; the brows carry those expressions.
- Sad uses a small open mouth where the reference uses a closed frown.
- The mouth inking assumes the standard VRoid face texture layout, and the teeth and tongue colours depend on VRoid's mouth texture.
- I didn't check helmets: a helmet brim within 5 cm of the brows would be drawn under them.
I also sent this summary to team-lead.
Files are in ~/Projects/lowmarch-bench/work/a:
- FINAL_woman.png
- FINAL_youth.png
- NOTES.md
